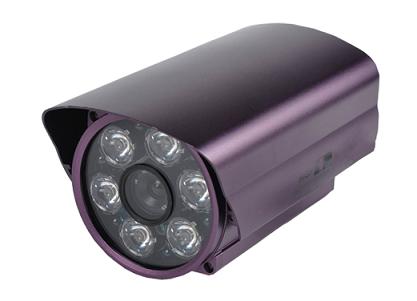

130705. LED Array Camera

LED Array Camera

Detailed description

Features

1. 1/3" Sony Super HAD CCD

2. 540 TVL

3. 16mm standard lens

4. Ø8×6PCS

5. 70m IR distance

Parameters

Model	DF-7901RN	DF-7952RN
Image Sensor	1/3” Sony Super HAD CCD
Pixels(H×V)	P:500(H) ×582(V) N:510(H) ×492(V)	P:752(H) ×582(V) N:768(H) ×494(V)

Scanning System	PAL/NTSC
Horizontal Resolution	420TVL	540TVL
Synchronization	Internal
Minimum Illumination	0Lux/F1.2(IR LED ON)
Backlight Compensation	Automatic
Electronic Shutter	1/50(1/60)~1/100,000 Sec.
White Balance	Automatic
Lens	Standard lens 16mm lens(12mm optional)
IR LED	ф256PCS+ф86PCS
IR Wavelength	850nm
IR Viewing Range	70m
S/N Ratio	≥48dB
Gamma Correction	0.45
Video Output	1.0Vp-p/75Ω
Operation Temperature	﹣20℃～50℃
Power Supply	DC 12V, 1000mA
Dimensions (mm)	202118115mm
Weight (g)	1134g
IP Grade	IP66
