130806. Waterproof IR Camera, 30M

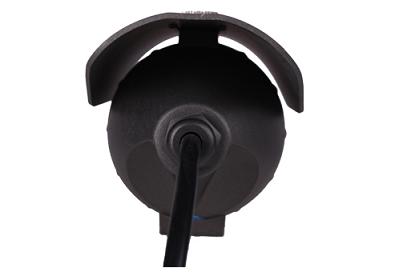

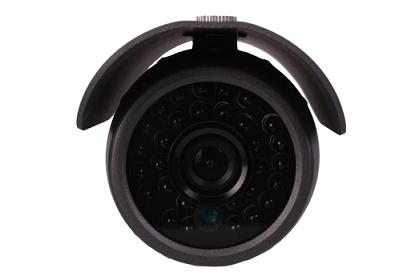

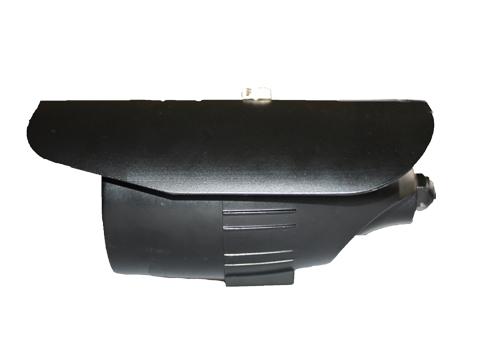

Waterproof IR Camera, 30M
Detailed description
Features
1. 1/3" Sony Super HAD CCD
2. 420 TVL
3. 3.6mm standard lens
4. φ5×30PCS IR LED
5. 30m IR distance
| Model | DF-452RP | DF-452RN | DF-454RN |
| Image Sensor | 1/4" Sharp CCD | 1/3" Sony Super HAD CCD | 1/4" Sony Super HAD CCD |
| Pixels(H×V) | P:500(H)×582(V) N:510(H)×492(V) | ||
| Scanning System | PAL / NTSC | ||
| Horizontal Resolution | 420 TVL | ||
| Synchronization | Internal | ||
| Minimum Illumination | 0Lux/F1.2(IR LED ON) | ||
| Backlight Compensation | Automatic | ||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | ||
| White Balance | Automatic | ||
| Lens | Standard Lens 3.6mm (6mm Optional) | ||
| IR LED | Ø5×30pcs | ||
| IR Wavelength | 850nm | ||
| IR Viewing Range | 30m | ||
| S/N Ratio | ≥48dB | ||
| Gamma Correction | 0.45 | ||
| Video Output | 1.0Vp-p/75Ω | ||
| Operation Temperature | -20℃～50℃ | ||
| Power Supply | DC 12V, 1,000mA | ||
| Dimensions (mm) | 130×66×66mm | ||
| Weight (g) | 243g | ||
| IP Grade | IP66 | ||
