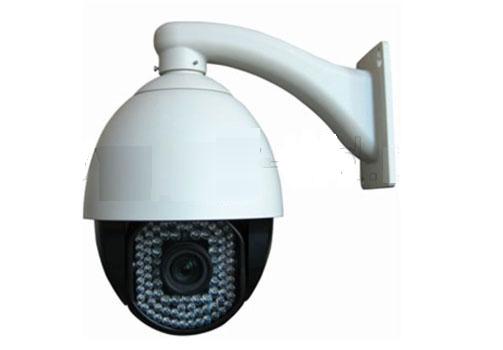

130903. 22X Zome Constant Speed Camera

22X Zome Constant Speed Camera

Detailed description

Features

◆ Image sensor: 1/3 Color CCD

◆ Resolution:600TVL

◆ Lens: CS-mount 6.0mm

◆ Image compression: H.264/MJPEG

◆ Vanderproof IP Grade66

Parameters

Model No.	DF-1842RS
Horizontal Resolution	540TVL
Zoom	22X
Power Suply	DC12V±0.5V/5A
Operation Temperature	Indoor : 0℃﹀+40℃, Out door:-40℃﹀+60℃
Relative Humidity	≤95% No Dew Condensation
Power Consumption	≤20W
Comunication Method	RS485
Protocol	RPWT, PELCO-D/PELCO-P Automatic Recognition
Baud Rate of Communication	1200bps / 2400bps/4800bps/9600bps
Pan Speed	0.1°﹀ 30°/S (1-64ranges)
Pan Movement	360°
Tilt Movement	90°
Auotomatical Match of speed and Focal Length	The dome camera can automatically adjust the speed basd on the current focal Length
Automatically IR On and Off	Automatically adjust the IR distance based on the current focal length
Scan Between A-B Points	set Random
Scanning Speed	1-64Ranges
Preset Dwell Time	1-60 Seconds Random
Preset	128 Positions
Preset Speed Setting	1-64 Rages Random
Patrol Track	8 Groups
Preset of patrol Track Group	16 positions
Memory of Track	1
Automatically Regression	1-255 Seconds Random
Track Dwell Time	88 Seconds
Privacy Masking Zone	2 Zones
Fan and Heater	Automatically Temperature Control
IR Leds	24pcs F10+ 78PCS IR Leds (IR View Distance:100m
