130820. 50M Waterproof IR Camera

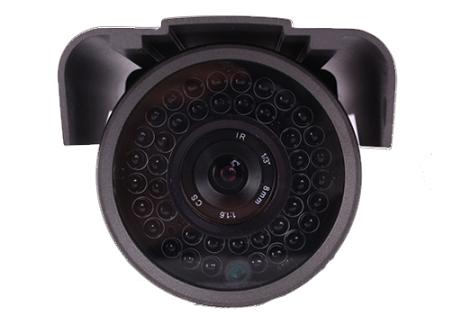

50M Waterproof IR Camera
Detailed description
Features
1. 1/3" Sony Super HAD CCD
2. 540 TVL
3. 8mm standard lens
4. φ5×42PCS IR LED
5. 50m IR distance
Parameters
| Model | DF-634RN | DF-638RN |
| Image Sensor | 1/3" Sony Super HAD CCD | |
| Pixels(H×V) | P:752(H) ×582(V) N:768(H) ×494(V) | |
| Scanning System | PAL/NTSC | |
| Horizontal Resolution | 480 TVL | 540TVL |
| Synchronization | Internal | |
| Minimum Illumination | 0Lux/F1.2 (IR LED ON) | |
| Backlight Compensation | Automatic | |
| Electronic Shutter | 1/50(60)~1/100,000 Sec. | |
| White Balance | Automatic | |
| Lens | Standard Lens 8mm (12mm Optional) | |
| IR LED | φ5×42PCS | |
| IR Wavelength | 850nm | |
| IR Viewing Range | 50m | |
| S/N Ratio | ≥48dB | |
| Gamma Correction | 0.45 | |
| Video Output | 1.0Vp-p/75Ω | |
| Operation Temperature | -20~55℃ | |
| Power Supply | DC 12V, 1,000mA | |
| Dimensions (mm) | 140×90×82mm | |
| Weight (g) | 855g | |
| IP Grade | IP 66 | |
