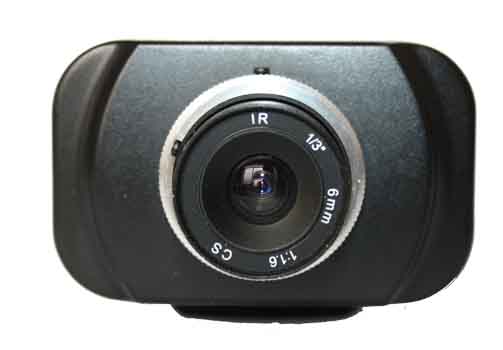

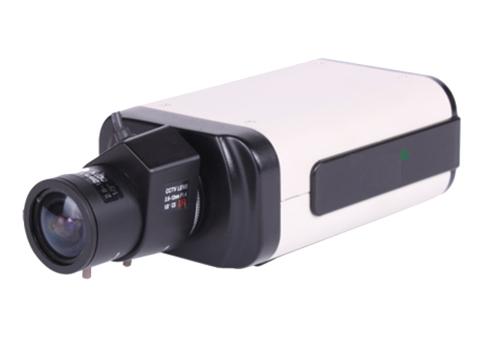

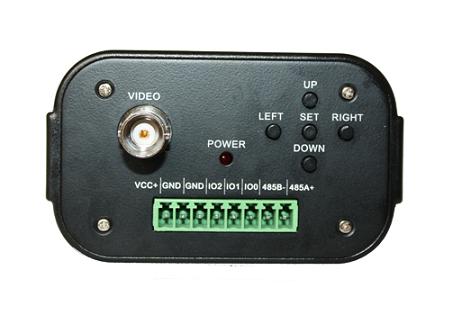

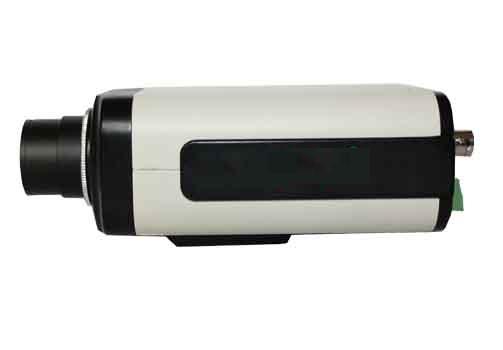

130501. Intelligent Face Recognition Camera
Features
1) High sensitive, steady and high clear image quality
2) Adopt high-quality lens, have excellent image and performance
3) Widely used for ATM, jewelry shop, finance room and many short distance important indoor conditions
4) With CE, FCC certificate
5) Warranty: 2 years
Parameters
Model
DF-5081CN
Image Sensor
1/ 3” Sony super HAD CCD
Pixels(H*V)
P:960(H)×582 (V)
N:976(H)×494 (V)
Scanning System
PAL/NTSC
Horizontal Resolution
650TVL
Wide Dynamic
Super Wide Dynamic
Synchronization
Internal
Minimum Illumination
0.01Lux/F1.2
Backlight Compensation
Automatic
Electronic Shutter
1/50(1/60)~100,000 Sec.
AGC
Automatic
White Balance
Automatic
Lens
DC Lens/Fixed lens/Video Lens
S/N Ratio
≥48dB
Gamma Correction
0.45
Video Output
1.0Vp-p/ 75Ω
Operation Temperature
- 20℃ ~ 50℃
Power Supply
DC 12V-24V
Dimensions (mm)
134×72×46mm
Weight (g)
800g
