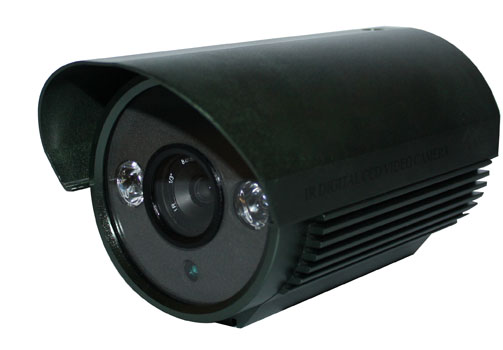

130706. LED Array Camera

LED Array Camera

Detailed description

Features

1. 1/3" Sony Super HAD CCD

2. 650 TVL

3. 8mm standard lens

4. Ø8×18PCS

5. 25~30m IR distance

Parameters

Model	DF-552RP	DF-556RN
	1/4” Sharp CCD
Image Sensor	1/4” Sharp CCD	1/4” Sony Super HAD CCD
Pixels(H×V)	P:512(H) ×582(V) N:512(H) ×492(V)	P:512(H) ×582(V) N:512(H) ×492(V)

Scanning System	PAL/NTSC
Horizontal Resolution	420 TVL
Synchronization	Internal
Minimum Illumination	0Lux/F1.2(IR LED ON)
Backlight Compensation	Automatic
Electronic Shutter	1/50(1/60)~1/100,000 Sec.
White Balance	Automatic
Lens	Standard lens 3.6mm lens(6mm optional)
IR LED	ф5*30PCS
IR Wavelength	850nm
IR Viewing Range	20m
S/N Ratio	≥48dB
Gamma Correction	0.45
Video Output	1.0Vp-p/75Ω
Operation Temperature	﹣20℃～50℃
Power Supply	DC 12V, 1000mA
Dimensions (mm)	865755mm
Weight (g)	230g
IP Grade	IP66
