130827. 4mm-9mm Varifocal Waterproof IR Camera

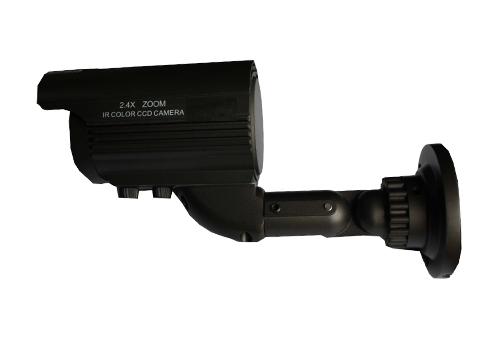

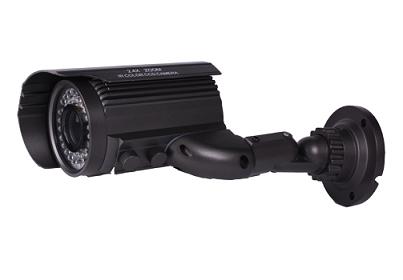

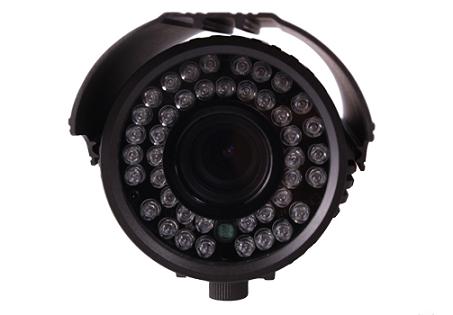

4mm-9mm Varifocal Waterproof IR Camera
Detailed description
Features
1. 1/3" Sony Super HAD CCD
2. 650 TVL
3. 4~9mm varifocal lens
4. Φ5×42PCS IR LED
5. 40m IR distance
Parameters
| Model | DF-6748RN | DF-6749RN | DF-6754RN | DF-6755RN |
| Image Sensor | 1/3" Sony super HAD CCD | |||
| Pixels(H×V) |
P:500(H)×582 (V) N:510(H)×492 (V) |
P:752(H)×582 (V) N:768(H)×494 (V) |
P:752(H)×582 (V) N:768(H)×494 (V) |
P:960(H)×582 (V) N:976(H)×494 (V) |
| Scanning System | PAL/NTSC | |||
| Horizontal Resolution | 420 TVL | 480TVL | 540TVL | 650TVL |
| Synchronization | Internal | |||
| Minimum Illumination | 0Lux/F1.2(IR LED ON) | |||
| Backlight Compensation | Automatic | |||
| Electronic Shutter | 1/50(1/60)~100 000 Sec. | |||
| White Balance | Automatic | |||
| Lens | 4mm~9mm | |||
| IR LED | Ø5 ×42pcs | |||
| IR Wavelength | 850nm | |||
| IR Viewing Range | 40m | |||
| S/N Ratio | ≥48dB | |||
| Gamma Correction | 0.45 | |||
| Video Output | 1.0Vp-p/ 75Ω | |||
| Operation Temperature | - 20℃ ~ 50℃ | |||
| Power Supply | DC 12V, 1,000mA | |||
| Dimensions (mm) | 245×78×117 mm | |||
| Weight (g) | 815g | |||
| IP Grade | IP66 | |||
