130608. IR Dome Camera

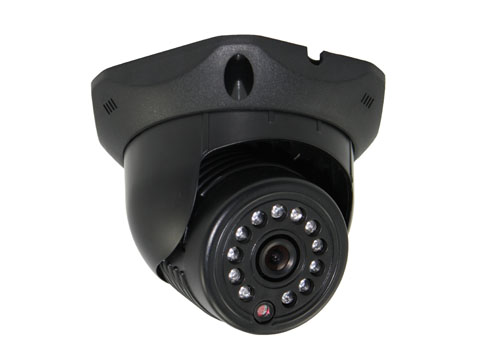

IR Dome Camera
Detailed description
Features
1. IR Dome Camera, perfect choice for indoor use.
2. Waterproof with good appearance.
Parameters
| Model | DF-309RP | DF-DF-399RN | DF-DF-398RN |
| Image Sensor | 1/4"Sharp CCD | 1/3"Sony Super HAD CCD | |
| Pixels(H×V) | P:512(H) ×582(V) N:512(H) ×492(V) | P:500(H) ×582(V) N:510(H) ×492(V) | P:752(H) ×582(V) N:768(H) ×494(V) |
| Scanning System | PAL/NTSC | ||
| Horizontal Resolution | 420 TVL | 480 TVL | |
| Synchronization | Internal | ||
| Minimum Illumination | 0Lux/F1.2(IR LED ON) | ||
| Backlight Compensation | Automatic | ||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | ||
| White Balance | Automatic | ||
| Lens | Standard Lens3.6mm(6mm Optional) | ||
| IR LED | Ø5×12PCS | ||
| IR Wavelength | 850nm | ||
| IR Viewing Range | 7~10m | ||
| S/N Ratio | ≥48db | ||
| Gamma Correction | 0.45 | ||
| Video Output | 1.0Vp-p/75Ω | ||
| Operation Temperature | -20~55℃ | ||
| Power Supply | DC 12V，1,000mA | ||
| Dimensions (mm) | Ø115×95mm | ||
| Weight (g) | 167g | ||
