130811. Waterproof IR camera, 30M

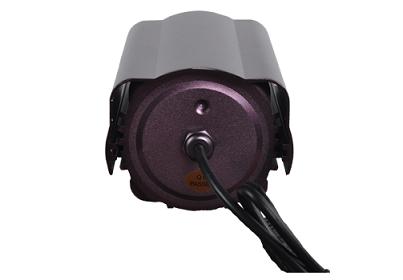

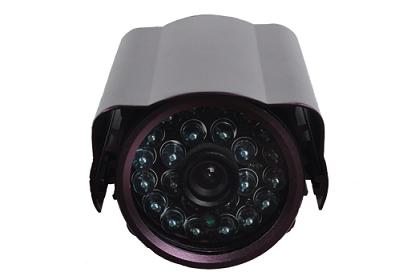

Waterproof IR camera, 30M
Detailed description
Features
1/3" Sony Super HAD CCD
480 TVL
6mm standard lens
Φ8×24PCS IR LED
30m IR distance
Parameters
| Model | DF-866RP | DF-856RN | DF-866RN |
| Image Sensor | 1/4" Sharp CCD | 1/3" Sony Super HAD CCD | |
| Pixels(H×V) |
P:512(H) ×582(V) N:512(H) ×492(V) |
P:500(H) ×582(V) N:510(H) ×492(V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
| Scanning System | PAL / NTSC | ||
| Horizontal Resolution | 420 TVL | 480 TVL | |
| Synchronization | Internal | ||
| Minimum Illumination | 0Lux/F1.2(IR LED ON) | ||
| Backlight Compensation | Automatic | ||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | ||
| White Balance | Automatic | ||
| Lens | Standard Lens 6mm(3.6/8 mm Optional) | ||
| IR LED | Ø8×24PCS | ||
| IR Wavelength | 850nm | ||
| IR Viewing Range | 30m | ||
| S/N Ratio | ≥48dB | ||
| Gamma Correction | 0.45 | ||
| Video Output | 1.0Vp-p/ 75Ω | ||
| Operation Temperature | -20℃~50℃ | ||
| Power Supply | DC 12V, 1,000mA | ||
| Dimensions (mm) | 120×83×82mm | ||
| Weight (g) | 593g | ||
| IP Grade | IP66 | ||
