Conventional Fire Alarm Control Panel

Detailed description

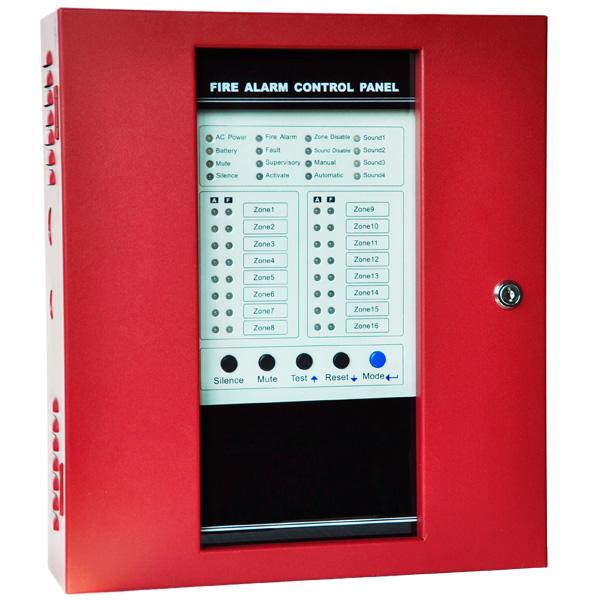

Conventional Fire Alarm Control Panel

The CK1000 Series Conventional Fire Alarm Control

Panel is a 24 volt, four to sixteen-zone, Class B,

Conventional Fire Alarm Control Panel. Designed

exclusively to meet the latest market requirements

and future ULC codes, the highly cost-effective

CK1000 Series can be used in a variety of low- to

mid-sized applications.

Features:

1.Four, Eight, Sixteen Zone Style B (Class B)

Initiating Device Circuits (IDCs), All zones

accept two-wire smoke detectors and any

normally-open contact devices.

Two Supervisory Input with DC12V output, ideal

to connect security alarm devices.

2．Three General Alarm, Trouble and Supervisory,Form A Relay Output.

3．One, Two, Four Built-in Sound Output, Style Y

(Class B) Notification Appliance (Signal)

Circuits (NACs), NACs may be programmed:

Silenceable or Non-Silenceable.

4．3.0 amps of total system power. Resettable

DC24V & Non-resettable DC24V Output.

5．Zone Input Short Circuit can be set to “Alarm” or “ Fault” mode.

6．RS485 Communication Port (optional).

7．Automatic/Manual mode can be programmed.

Disable/Enable control per Zone (IDC) can be programmed.

8．Disable/Enable Sound Output(NACs) can be programmed.

9.Zones Input :4,8,16 zones Modules for user to select, each zone

can connect max.25 conventional detectors
