130603. Color Dome Camera

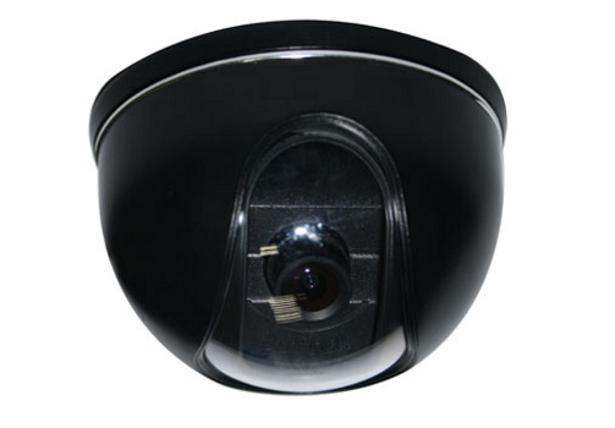

Color Dome Camera
Detailed description
Features
1. 1/3"Sony Super HAD CCD
2. Light, beautiful layout
3. Perfect choice for the lift
Parameters
| Model | DF-389CD | DF-382CN | DF-389CN |
| Image Sensor | 1/4” Sharp CCD | 1/4"Sony CCD | 1/3"Sony CCD |
| Pixels(H×V) | P:512(H) ×582(V) N:512(H) ×492(V) | P:500(H) ×582(V) N:510(H) ×492(V) | |
| Scanning System | PAL / NTSC | ||
| Horizontal Resolution | 420 TVL | ||
| Synchronization | Internal | ||
| Minimum Illumination | 0.5LuxF1.2 | 0.05LuxF1.2 | 0.1LuxF1.2 |
| Backlight Compensation | Automatic | ||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | ||
| White Balance | Automatic | ||
| Lens | Standard Lens 3.6mm(6mm Optional) | ||
| S/N Ratio | ≥48dB | ||
| Gamma Correction | 0.45 | ||
| Video Output | 1.0Vp-p/ 75Ω | ||
| Operation Temperature | -20℃~50℃ | ||
| Power Supply | DC 12V, 1,000mA | ||
| Dimensions (mm) | Ø85×54mm | ||
| Weight (g) | 139g | ||
