130609. IR Dome Camera & Day and Night

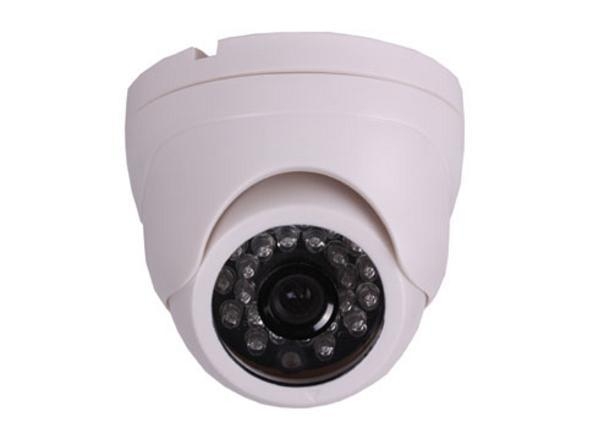

IR Dome Camera & Day and Night
Detailed description
Features
1. 1/3"Sony Super HAD CCD
2. DSP digital signal processing technology, it is suitable for back light compensation under several illumination condition.
3. Perfect choice for elevator, supermarket and shop, etc.
Parameters
| Model | DF-392RN |
| Image Sensor | 1/3" Sony Super HAD CCD |
| Pixels(H×V) | P:512(H) ×582(V) N:512(H) ×492(V) |
| Scanning System | PAL/NTSC |
| Horizontal Resolution | 420 TVL |
| Synchronization | Internal |
| Minimum Illumination | 0LuxF1.2(IR LED ON) |
| Backlight Compensation | Automatic |
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. |
| White Balance | Automatic |
| Lens | Standard Lens 3.6mm(6mm Optional) |
| IR LED | Ø5×48PCS |
| IR Wavelength | 850nm |
| IR Viewing Range | 25~30m |
| S/N Ratio | ≥48dB |
| Gamma Correction | 0.45 |
| Video Output | 1.0Vp-p/ 75Ω |
| Operation Temperature | -20℃~50℃ |
| Power Supply | DC 12V 1,000mA |
| Dimensions (mm) | Ø93×60mm |
| Weight (g) | 329g |
