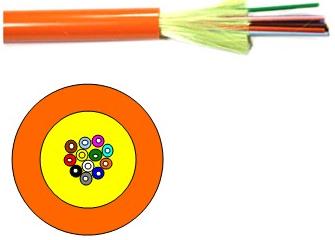

120105. Distribution Tight Buffer

Tight buffered fiber without jelly compound, Aramid yarn strength members Round construction for minmum wind drag and ice buildup increases span length capability
Detailed description
Description:

Tight buffered fiber without jelly compound
Aramid yarn strength members
PVC,LSZH,Plenum outer sheath available
Round construction for minmum wind drag and ice buildup increases span length capability
Usually, SM: yellow; MM: orange outer sheath
The termination can be made standard connector
Optical testing follows ITU, IEC and EIA/TIA-FOTP Quality approved by UL

Application:

Suitable for aerial,pipeline,bracket laying,
Suitable for indoor and outdoor cable
Aramid strength members reduce weight for longer span lengths
Lightweight,all dielectric self-supporting(ADSS) construction is ideal for use near electrical power lines

Mechanical & Environmental characteristics:

ITEM CHARACTERISTICS
Operation temperature -20℃~+60℃
Storage temperature -40℃~+85℃
Riser UL/cUL Rated Type OFNR/OFN FT4
Plenum UL/cUL Rated Type OFNP/OFN FT6
Jacket Material PVC or LSZH or Plenum

Part
Number
Fiber
Count
Outside
Diameter
(mm)
T.B
Diameter
(mm)
Cable
Weight
(kg/km)
Tensile Load
Crush Load
Bend Radius
S (N)
L (N)
S (N)
L (N)
S (mm)
L (mm)
H02DIXXR-CL
2
3.5
0.9
15
600
200
1500
600
20D
10D
H04DIXXR-CL
4
5.0
0.9
22
600
200
1500
600
20D
10D
H06DIXXR-CL
6
5.0
0.9
23
600
200
1500
600
20D
10D
H08DIXXR-CL
8
5.5
0.9
27
600
200
1500
600
20D
10D
H012DIXXR-CL
12
6.3
0.9
35
600
200
1500
600
20D
10D
H016DIXXR-CL
16
7.0
0.9
45
1500
600
2000
1000
20D
10D
H018DIXXR-CL
18
7.5
0.9
51
1500
600
2000
1000
20D
10D
H024DIXXR-CL
24
8.5
0.9
60
1500
600
2000
1000
20D
10D

Note: H denotes Haowave logo; XX denotes fiber P/N code(09: SM; 62: 62.5/125um; 50: 50/125um;OM3) ; 02 denotes fiber count ; R denotes Riser ( L: LSZH; P: Plenum) ; DI denotes distribution cable CL denotes the color of outer sheath.

Optical Characteristics:

Glass Type
62.5/125um
62.5/125um
50/125um
50/125um
50/125um
SM(G652.D)
Grade B
Grade A
Grade B
Grade A
OM3
P/N Code(X)
62B
62A
50B
50A
OM3
09
Operating
Wavelength
850/1300nm
850/1300nm
850/1300nm
850/1300nm
850/1300nm
1310/1550nm
Bandwidth
(MHz.km)
160/500
200/600
200/500
400/800
1500/500
_
Attenuation
(dB/km)
3.50/1.50
3.00/1.00
3..50/1.50
3.00/1.00
2.70/0.80
0.45/0.30
Link Length
For 1000M
200/500
275/550
500/550
550/550
1000^4/600
_
Link Length
For 10G
——
——
——
——
300/
_

Fiber Colour Code:

BL- Blue BR- Brown RE- Red PU- Purple
OR- Orange GY- Grey BK- Black PI- Pink
GR- Green WH- White YE- Yellow AQ- Aqua

Note:



1000



1. The colour identification of the buffer layer complies with the standard colour identification set in GB13993.3-2001 Standard
2. S: short term; L: long term; T.B: tight buffer
3. Crush load: N/100mm; D: cable diameter
