111402.Cat7 FTP patch panel

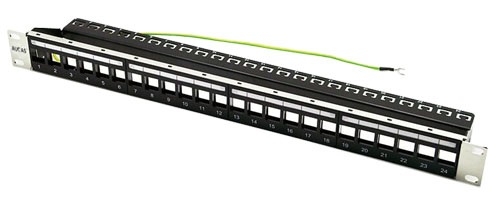

Cat7 FTP 24 ports patch panel

Detailed description

Material: cold rolled steel + polycarbonate lineup + phosphor bronze slip + 50µ gold-plated pin
Structure: 483*85*44.5MM (conform to any standard 19inch, 1U cabinet)
Insertion: ≥750times
Connection: ≥250times
Color: black

Product specification
Aucas Cat7 UTP 24 ports patch panel adopts the design of high density, and thicken cold rolled steel an integrated to strong and durable.
Using patent printed circuit board degaussing technology can effectively reduce the internal crosstalk.
The front stitching is made of 50µ gold-plated technology that has superior performance of antioxidant and contact behavior. It can provide more than 750times cable release and plug in and promise the stable and faster transfer of data.
High strength polycarbonate lineup and phosphor bronze clip and provide more than 250times joint, ensure the cable card broken, and improve the contact performance.
Equipped with pure copper ground wire, well anti jamming, guarantee the stability of information transmission.
IDC has T568A/T568B general line sequence color code, convenient for users to install and check.
Distribution frame with metal wire frame, facilitate cable fixed, cabinet overhaul, beautiful and clean.
Using the high quality flame retardant polycarbonate material conforms to the fire resistance requirement of UL94V-O.
With certification of CE, FCC, ROHS, ETL and the ministry of information industry certification
All the products conform to the F Degree standard of ISO/IEC 11801 and the standard of YD/T926.1-2009 TIA/EIA568C.2.

Product characteristic
Dielectrics withstand voltage: 1000V AC RMA, 60Hz 1min
Current rating: 1.5Amp
Insulation resistance: min10MΩ
Contact resistance: 2MΩ
Temperature range: -40℃~+70℃

Modular connector
RJ45 8-way connector: meet the FCC part68 and IEC60603-7 requirements.
Durability: plug in/out more than 750times
Material: phosphor bronze clip, nickel-plate, 50µ gold-plated

IDC connector
IDC connector: accept 22-24AWG conductor
Insulation diameter: 0.70-1.40mm
Material: nickel plating phosphor bronze
Subject and layer material of IDC: plastic, fireproofing fit to UL94V-O
IDC card number line: accept more than 250times

Product characteristic
Thicken cold rolled steel an integrated to strong and durable, distribution frame with metal wire frame, facilitate cable fixed, cabinet overhaul, beautiful and safe.
Modular uses zinc alloy shell, can effectively reduce electromagnetic interference. 50µ gold-plated pin is antioxidant performance excellence.
High strength polycarbonate lineup and phosphor bronze clip, tool-less design are good performance, convenient construction.
