110606.Cat7 FTP patch cord
  • 110606.Cat7 FTP patch cord

110606.Cat7 FTP patch cord

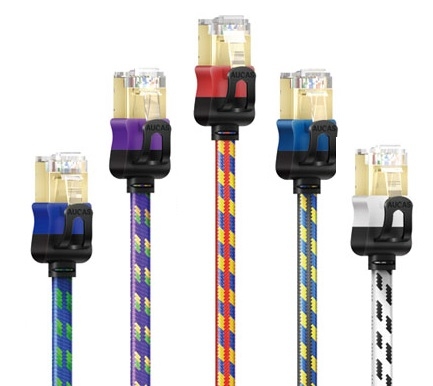

Cat7 FTP braided patch cord
Detailed description
Material: oxygen free copper + PVC inner layer + 50µ gold-plated pin + Kevlar rope
Frequency: 10GBPS
Bandwidth: 500MHZ
Dimension: 32AWG
Pluggable: ≥750times
Color: gold, purple, black
Length: 0.5/1/2/3/5/8/10/15m
Product description
Aucas Cat7 FTP braided patch cord as the carrier of monitoring, voice, data, media, is used in the connection of the socket of office and facility terminal, or the connection of the modular socket in central office and equipment, which is satisfied with the requirements of the applications of Line Class E.
There is a sign of Aucas on every patch cord and connectors, in order to protect the performance of plug the back-end from damaged. There is protection architecture on both ends of RJ45 plug of the patch cord, and with a special transparent dust crop. The connector is made of 50µ gold-plated precious so that it has good resistance to oxidation and the transmission performance. Every patch cord passes the strict test
With certification of CE, FCC, ROHS, ETL and the ministry of information industry certification
Using the high quality flame retardant polycarbonate material conforms to the fire resistance requirement of UL94V-O.
Product application
Used in the network facility about education, government, security, medical, hotel, high speed rail and so on.
The application of product: transmit the information about security, voice, data, media; 10Base-T, 100Base-T, 1000Base-T, 10000Base-T; bandwidth is up to 500MHZ; TP-PMD.
Electrical characteristic
Characteristic impedance (1-130MHz): 100Ω±15ohm
Average characteristic impedance (1-130MHz): 100Ω±15ohm
Minimum mutual capacitance: 44pF/m
Maximal balancing capacitance: 600pF/km
Direct current resistance: 7.2 ohm/km
Maximal balanced resistance: 2%
Nominal velocity of propagation (NVP): 0.74c.
Environment condition
Storage temperature: -20℃~60℃
Operating temperature: 0℃~50℃
Application standard
Conform for: YD/T 926.2-2009, GB 50311-2007, ISO/IEC 11801-2002 ed2.0, ANSI/TIA 568-C.2, EN 50173-2007, IEC 60603-7-3.
Product characteristic
50µ gold-plated precious metals, antioxidant, anti-aging, strong transmission performance, resistance to plug
The aluminum foil shield, 8*7 (56pairs) oxygen free copper, shielding and transmission performance are excellent.
Ultra-thin design, import PVC material, Kevlar wire provides three kinds of color to choose. It has tensile resistance, dirt resistance, abrasion resistance, and antimicrobial properties.
