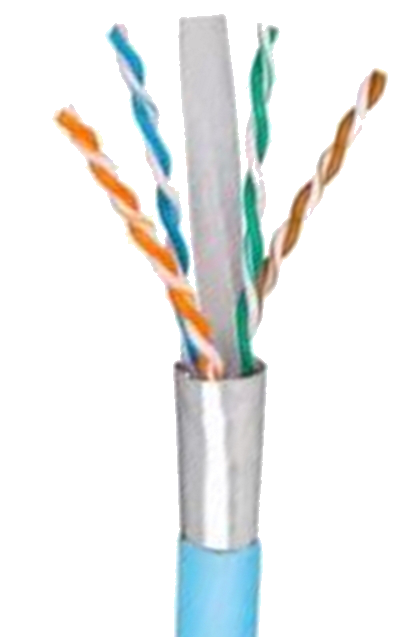

U/UTP Cat6A 24AWG LSZH

U/UTP Cat6A, 4 pairs, LSZH Jacket; CPR-Eca, Dca, Cca, B2ca grade; 24AWG BC; 500Mhz, complied with EN50173, ANSI/TIA-568.2-D, ISO/IEC11801

Detailed description

Description:

Shielded Copper cable, 4 pairs, Category 6A, solid 4 pairs
Cable is used for indoor installation and unshielded systems

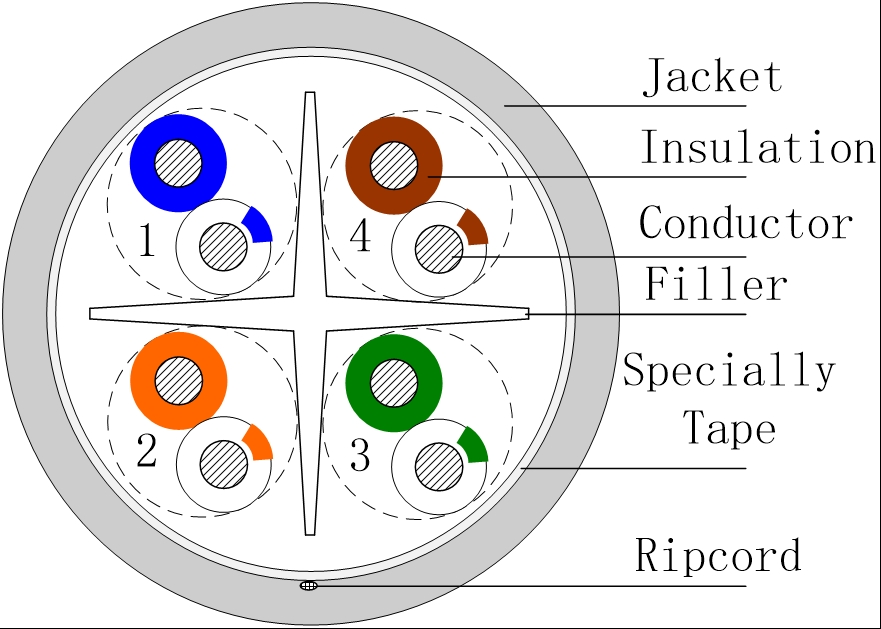

Materials:

Conductive material: wire made of soft annealed electrolytic copper
Conductor insulation: PE
The cable jacket: LSZH(CPR-Eca, Dca, Cca, B2ca)

Technical characteristics:

Conductor diameter: 24AWG
Outer cable diameter: 7.2±0.3mm
Operating temperature: -30°C – +70°C (+22°F – +158°F)
Standard package: 305 m (1000 ft)

Electrical characteristics

Frequency, MHz

Attenuation, dB

NEXT, dB

PSNEXT, dB

ELFEXT, dB

PSELFEXT, dB

20.0

2.0

74.3

72.3

67.8

64.8

23.0

3.8

65.3

63.3

55.8

52.8

24.5

5.3

60.8

48.8

49.7

46.7

25.0

5.9

59.3

57.3

47.8

44.8

25.0

7.5

56.2

54.2

43.7

40.7

25.0

8.4

54.8

52.8

41.8

38.8

24.3

9.4

53.3

41.3

39.8

36.8

31.25

23.6

105

51.9

49.9

37.9

34.9

62.5

21.5

15.0

47.4

45.4

31.9

28.9

100

20.1

19.1

44.3

42.3

27.8

24.8

200

18.0

27.6

39.8

37.8

21.8

18.8

250

17.3

31.1

38.3

36.3

19.8

16.8

300

16.8

34.3

37.1

35.1

18.3

15.3

500

15.2

45.3

33.8

31.8

13.8

10.8
