SF/UTP Cat6 Cable

SF/UTP Cat6, 4 pairs, PVC/PE/LSZH Jacket; 24AWG/23AWG BC; 250Mhz, complied with EN50173, ANSI/TIA-568.2-D, ISO/IEC11801

Detailed description

Description:

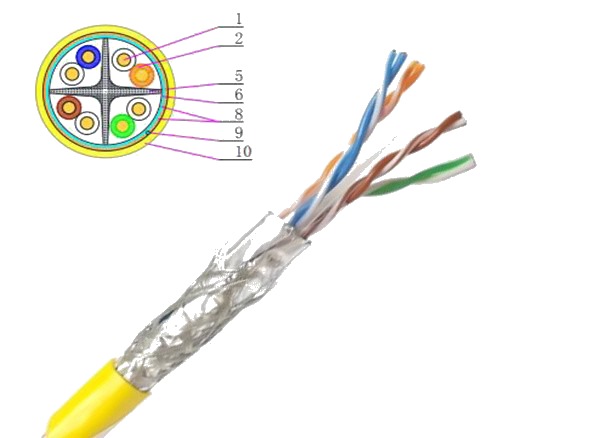

Shielded Copper cable, 4 pairs (separated), category 6, solid, with drain wire
Application: Horizontal communication cable
Cable is used for indoor installation

Technical characteristics:

Conductor diameter: 24AWG/23AWG
Outer cable diameter: 7.6 ± 0.3 mm
Jacket material: PVC/PE/LSZH
Minimum bend radius: 8 outer cable diameters
Conductor elongation: 15% minimum
Drain-wire Material: Tinned Copper
Operating temperature: -20°C - +75°C (-4°F - +167°F)
Rip cord has a breaking strength of 6.9 kg (60 N)
Braiding shield: 40%AM/40%TC
Standard package: 305 m (1000ft)

Electrical characteristics

Frequency, MHz

Attenuation, dB

NEXT, dB

PSNEXT, dB

ELFEXT, dB

PSELFEXT, dB

1.0

20.0

2.4

74.3

72.3

67.8

64.8

4.0

23.0

3.8

65.3

63.3

55.8

52.8

8.0

24.5

5.3

60.8

58.8

49.7

46.7

10.0

25.0

6.0

59.3

57.3

47.8

44.8

16.0

25.0

7.6

56.3

54.3

43.7

40.7

20.0

25.0

8.5

54.8

52.8

41.8

38.8

25.0

24.3

9.5

53.3

51.3

39.8

36.8

31.25

23.6

10.7

51.9

49.9

37.9

34.9

62.5

21.5

15.4

47.4

45.4

31.9

28.9

100.0

20.1

19.8

44.3

41.3

27.8

24.8

200.0

18.0

29.0

39.8

37.8

21.8

18.8

250.0

17.3

32.8

38.3

36.3

19.8

16.8

Conductor resistance at 20°C (68°F)

9.38 Ohm/100 m (2.9 Ohm/100 ft)

DC Resistance Unbalance

Pair-to-Ground Capacitance Unbalance

330 pF/100 m (101 pF/100 ft)

Impedance 0.772-100 MHz

85-115 Ohm

Mutual Capacitance

5.6 nF/m (1.7 nF/ft)

Spark Test

2.5 kV
