120315. FTTH Box
  • 120315. FTTH Box

120315. FTTH Box

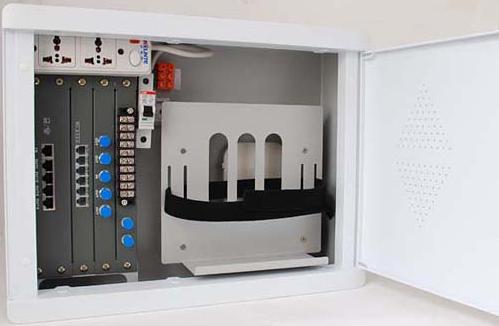

FTTH means fiber to the home; it is a from of fiber optic communication delivery that reaches one living or working space. To be more specific, Optical Network Unit (ONU) is set as far sa possible close to the end user. The significant technology of FTTH not only provides greater bandwidth, but also enhances the transparency of network to data format, speed, wavelength and treaty, lowers the requirement to environment and power supply, simplifies maintenance and installation. It is especially designed for FTTH development. The box is installed in the bouse for exclusive use, containing ONU device, router, and e modules for vice and Cable TV, providing protecting FTTH cable at the same time.
Detailed description

Features
* Optimized structure with ABS material for the cover, strong penetrability of wireless signal
* Metallic base, significant appearance
* One box for all terminations
* Including ONU device accessories, wireless router, information box, socket
* Data, voice, cable TV module optional according to requirements
* Built-in and wall-mounted installation

Ordering Guide

NO. Type Dimension (mm) H*W*D Description Remarks
1 SPX2-01H1a 250*300*100 1 ONU Built-in
2 SPX2-01H2a 300*350*100 1 ONU, data, voice, cable TV module optional Built-in
3 SPX2-01H3a 400*350*100 1 ONU, data, voice, cable TV, security monitoring module optional Built-in
4 SPX2-01H1b 250*300*100 1 ONU Wall mounted
5 SPX2-01H2b 300*350*100 1 ONU, data, voice, cable TV module optional Wall mounted
6 SPX2-01H3b 400*350*100 1 ONU, data, voice, cable TV, security monitoring module optional Wall mounted
