120316. SC 86 fiber terminal box

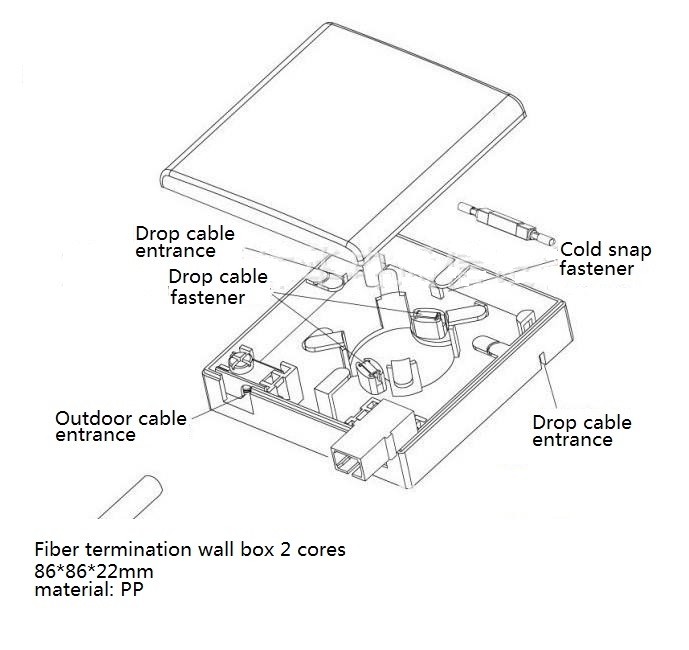

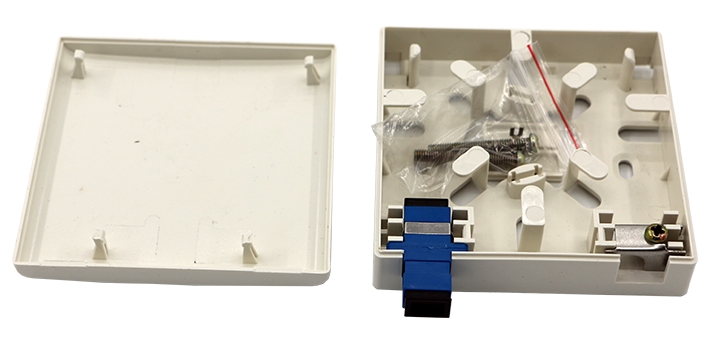

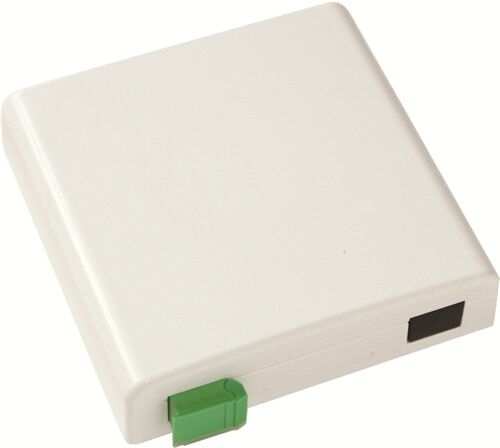

wall mounted SC 86 fiber terminal box

Detailed description

Features

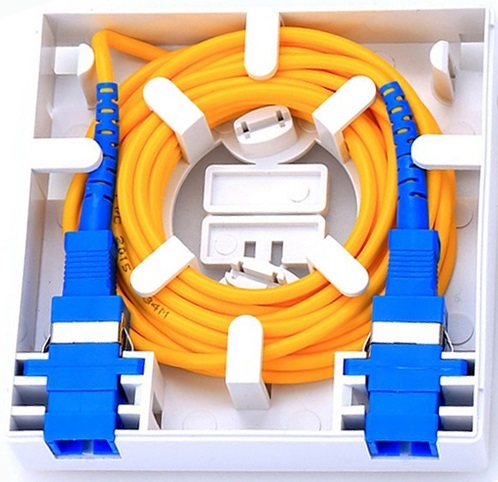

1. Support termination, splicing and storage for fiber optic cable systems
2. Suitable for two adapters SC/APC configuration
3. Compatible with G.657A1 and G652D.
4. Compact structure and perfect fiber management
5. Engineered fiber routing protect bend radius through the unit to ensure signal integrity
6. Applicable for wall-mounted and compatible with flush-mount outlet.

Specifications

Parameter	Value	Remark
Model	120316
Outside Dimension (mm)	868625mm
Material	Plastic
Color	White
Storage of fibers	G.657/G652D
Splice capacity	2 single fiber
Splice Method	Fusion Splice	45mm sleeve
Adapter type	SC
Input cable	3mm or figure 8 (2*3mm)	From side or bottom
