121003. 10/100M single fiber ethernet media converter
  • 121003. 10/100M single fiber ethernet media converter

121003. 10/100M single fiber ethernet media converter

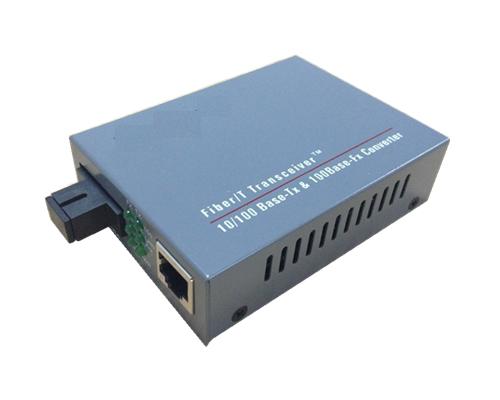

10/100M single fiber single mode Bi-Directional Fiber Media Converters
Detailed description
Description:

NF-E350 WDM Media Converter Bi-Directional 1FX+1TX SC/PC Connector 20-40-60-80 Km
1. Detailed Product Description
NF-E350 series enables network managers to connect 10 Mbps and 100 Mbps twisted pair network segments and active equipment to fiber optic cabling more cost-effectively than ever. WDM Technology Combines Dual Fiber Cables into Single Fiber. Greatly save the Installation cost of Expensive Fiber Cable. Both a media and data rate converter, NF-E350 series features 10/100 auto-negotiation on the twisted pair port while the fiber port operates at 100 Mbps. NF-E350 series converters are ideal for any premises FTTD, LAN-to-LAN or LAN-to-WAN fiber networking applications.
2. Key features
NF-E350 WDM Media Converter Bi-Directional 1FX+1TX SC/PC Connector 20-40-60 Km
1. Detailed Product Description
NF-E350 series enables network managers to connect 10 Mbps and 100 Mbps twisted pair network segments and active equipment to fiber optic cabling more cost-effectively than ever. WDM Technology Combines Dual Fiber Cables into Single Fiber. Greatly save the Installation cost of Expensive Fiber Cable. Both a media and data rate converter, NF-E350 series features 10/100 auto-negotiation on the twisted pair port while the fiber port operates at 100 Mbps. NF-E350 series converters are ideal for any premises FTTD, LAN-to-LAN or LAN-to-WAN fiber networking applications.
3. Key features
Complies with IEEE802.3 and IEEE802.3u 10/100Base-TX and 100Base-FX10/100Mbps and full/half duplex automatically configure in TP portMDI/MDI-X Auto Negotiation
Max transmit packet(s): 1600bytesWDM Technology Combines Dual Fiber Cables into Single Fiber. Greatly save the Installation cost of Expensive Fiber Cable
LFP Function(Link fault pass through)
1. ON--- The function is usable.
TX=>Fiber: If TX port link down, then converter will forced fiber to link down. Fiber =>TX: If Fiber port link down, the media converter will forced TX port to link down.
2. OFF---The function is disable
Notice: When you turn the switch to ON or OFF to change current mode, please make sure power turn off and turn on again!
4. Technical Specification
Standard 802.3 10B-T, 802.3u 100b-Tx&100b-Fx, 802.3x, 802.1. P
Wavelength TX1310nm/RX1310nm or BIDI TX1310nm/RX1550nm; TX1550nm/RX1310nm
Fiber cable 8.3/125, 8.7/125, 9/125 or 10/125single-mode
Connector RJ-45 Jack and Fiber optic connectors: SC connector
Cable Model and Length Twisted pair Cat. 5 UTP Cable: 100m
Buffer memory Max transmit packet(s): 128Kbyte
Switching mechanism Forward&Filter Rate: 1600bytes Store &Forward10b-T( 14, 880PPS-64bytes), 100b-Tx/Fx
(148, 800PPS-64Bytes)
MAC Address and self-learning 1K
LED Indicators POWER, FX LINK/ACT, 100, TP LINK/ACT, FDX/COL.
Power supply 2A +5V
Environment Operating temperature: 32 to 122F(0 to 60ºC)Storage temperature: -4 to 140F (-20 to 70ºC)Relative humidity: 5% to 90%
Size 26.5mm(H)x 70.5mm(W) x 94mm(D)

Product Name   Product  Description
NF-E350S20B1

10/100M  Bi-Di  Converter  20KM  SC  Connector    TX  1310nm  RX  1550nm  over  one  Fiber  external  power  supply

NF-E350S20B2 10/100M  Bi-Di  Converter  20KM  SC  Connector  TX  1550nm  RX  1310nm  over  one  Fiber  external  power  supply
NF-E350S40B1 10/100M  Bi-Di  Converter  40KM  SC  Connector  TX  1310nm  RX  1550nm  over  one  Fiber  external  power  supply
NF-E350S40B2 10/100M  Bi-Di  Converter  40KM  SC  Connector  TX  1550nm  RX  1310nm  over  one  Fiber  external  power  supply
NF-E350S60B1 10/100M  Bi-Di  Converter  60KM  SC  Connector  TX  1310nm  RX  1550nm  over  one  Fiber  external  power  supply
NF-E350S60B2 10/100M  Bi-Di  Converter  60KM  SC  Connector  TX  1550nm  RX  1310nm  over  one  Fiber  external  power  supply
