STL

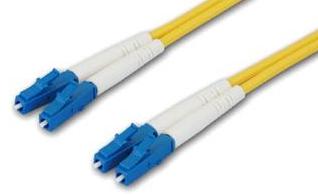

120401. Duplex Patch Cord
Return Loss: ≥ 50dB
5-50Hz, 1.5mm Vibration Amplitude
Items
LED Source
Test Result
Optical Performance
Insertion Loss
1310mm
≤0.3dB
NA
Return Loss
1310mm
NA
≥50dB(PC) ≥60dB(APC)
Mechanical Performance
Interchangeability
Random connection
△＜0.2dB
△＜0.5dB
Vibration
△＜0.2dB
△＜0.5dB
Tensile Strength
6kg
△＜0.2dB
△＜0.5dB
Environmental Performance
High temperature
+85℃, 96H
△＜0.2dB
△＜0.5dB
Low temperature
-40℃, 96H
△＜0.2dB
△＜0.5dB
Temperature Cycling
-40℃~+85℃ 5Cysles
△＜0.2dB
△＜0.5dB
Humidity
+40℃, 90%~95%, 96H
△＜0.2dB
△＜0.5dB
