120201. FTTx Indoor Figure 8 drop Cable

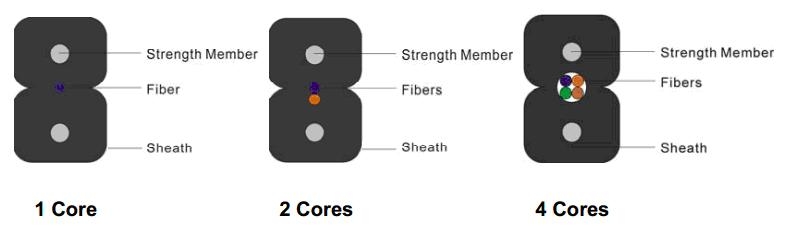

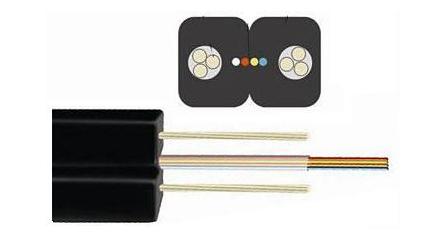

The optical fiber is positioned in the centre, with two parallel strength member (FRP/steel wire) placed at the two sides. Then, the cable is completed with a LSZH fire-retardant sheath.

Detailed description

Cable Type:

GJXFH - xM (1-4 Fiber)

Type	Outside Diameter(mm)	Weight (kg/km)	Minimum Bending Radius （mm）		Allowable Tensile Strength ((N)		Allowable Pressure (N/100mm)		Temperature (°C)
Type	Outside Diameter(mm)	Weight (kg/km)	Static	Dynamic	Short-term	Long-term	Short-term	Long-term	-20°C ~ +60°C
GJXH-2(1)B6	(2.0±0.1)X(3.1±0.1)	9.5	15	30	200	100	2200	1000
GJXFH-2(1)B6	(2.0±0.1)X(3.1±0.1)	8	15	30	100	50	1000	500
GJXDH-4B6	(2.0±0.1)X(4.0±0.1)	10.5	15	30	100	50	1000	500

Note:
GJX: Bow-type drop cable; F: Non-metal strength member; H: LSOH sheath;
x: number of fibers (1, 2, 4 ): M: fiber type ( B1.1: G.652B; B1.3: G.652D; B6a: G.657A; B6b: G.657B )

Fiber Attenuation

Items

Description

G.652D,G.657A1,G657A2

Attenuation@1310

Attenuation@1550

0.35dB/km

0.21dB/km

Cable Dimension and Construction

Items		Description
Optical Fiber	Fiber Count	1/2/4 fiber
Strength Member	Material Diameter	KFRP 0.6±0.05mm
Sheath	Material Thickness	LSZH Minimum0.35mm
Cable Dimension	Width×Height	2.0(±0.1)mm × 3.0(±0.1)mm
Cable Weight	Net weight	Approx.9kg/km
Fiber Color Code		1-Blue, 2-Orange, 3-Green, 4-Brown

Mechanical and Environmental Characteristics

Items		Description
Tensile Strength	IEC 60794-1-E1 Maximum	Change of Attenuation≤0.05dB 80N
Crush Resistance	IEC 60794-1-E3 Maximum	Change of Attenuation ≤ 0.4dB 1000N/100mm
Impact	IEC 60794‐1‐E4	Change of Attenuation ≤ 0.1dB
Bending Radius	G652D Installation Working G657A1 Installation Working G657A2 Installation Working	60mm 30mm 40mm 20mm 30mm 15mm
Temperature Range	^{-10℃ - +60℃}	Change of attenuation≤0.3dB/km
