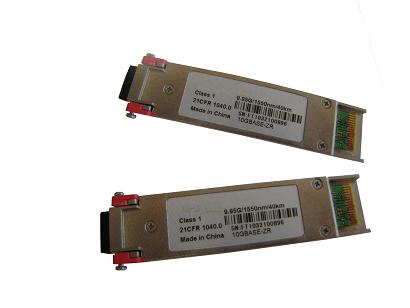

121301. XFP 10G 40KM transceiver

10G 1550nm 40km DFB TXpower -1 ~ 2dBm RX Sens -12.3 dBm ROHS

Detailed description

Description:

Product Name: 40KM 10G XFP module
Model: NF-XFP-ER
Detailed Product Description:
10G 1550nm 40km DFB TXpower -1 ~ 2dBm RX Sens -12.3 dBm RoHS
PRODUCT FEATURES:
850nm/1310nm/1550nm laser diode transmitter
Support 9.95GB/s to 11.3GB/s data rate
Below 2.5W power consumption
XFP MSA package with duplex LC connector
with Digital Diagnostic Monitor Interface
Operating temperature range 10 to 70 degrees centigrade
RoHS-6 Compliant
Hot-Pulggable
Link length of 300m/10km/40km/80km
APD Receiver
NO Reference Clock required
Built-in digital diagnostic functions
Standard bail release mechanism
APPLICATIONS:
10GBase-ZR/ZW 10G Ethernet
80KM 10G Fibre Channel

Product Name	Product Description
NF-XFP-SR	10G 850nm 0.3km VCSEL TX power -7.5 to -1dBm RX Sens -9.9dBm ROHS
NF-XFP-LR	10G 1310nm 10km DFB TX power -6.5 to 0.5dBm RX Sens -14.5dBm ROHS
NF-XFP-ER	10G 1550nm 40km DFB TXpower -1 ~ 2dBm RX Sens -12.3 dBm ROHS
NF-XFP-ZR	10G 1550nm 80km DFB Tx power 0~4 dBm RX Sens -24dBm ROHS
