170102. XLPE Cable 3.6/6kV - 26/35kV

Voltage: 3.6/6, 6/10, 8.7/15, 12/20, 21/35, 26/35kV Standard: IEC 60502, IEC 60228, IEC 60332, GB/T 12706.1-2008 Applications: For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Detailed description

Medium Voltage XLPE Insulated Unarmored Power Cable

YJV CU/XLPE/CTS/PVC

ZR-YJV CU/XLPE/CTS/FR-PVC

Constructions

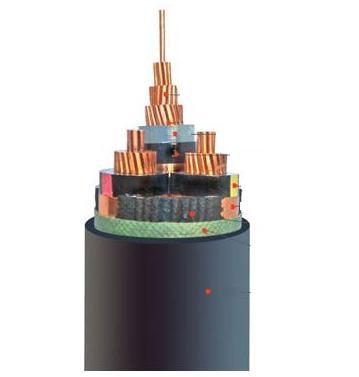

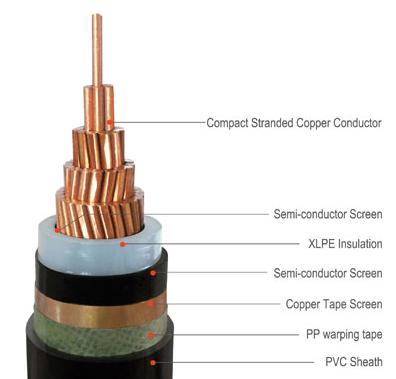

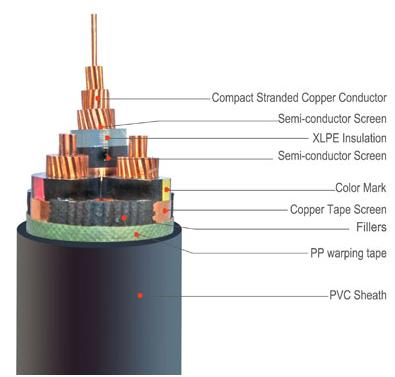

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE(cross-linked polyethylene) rated at 90℃

Insulation Screen: Semi-conductor

Screen : Copper tape

Sheath : PVC or FR-PVC type ST₂ to IEC 60502, black

Code Designation

YJ: XLPE insulation

V: PVC sheath

ZR: Flame resistant

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)

China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)

Other standards such as BS, DIN and ICEA upon request

Technical data

Rated voltage: 3.6/6, 6/10, 8.7/15, 12/20, 21/35, 26/35kV

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core

Certificates

CE, CCC, KEMA and more others at request
