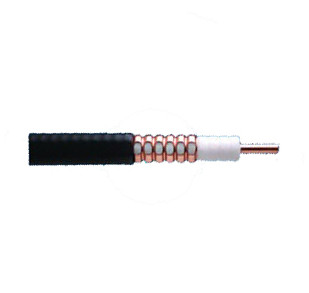

140501. HLCAAY-50-12(1/2) CouplingLeaky

HLCAAY-50-12(1/2") CouplingLeaky

Detailed description

Cable Structure
Inner conductor ø mm	4.8 CCA(cladding)
Insulation ø mm	12.3 Foam PE
Outer conductor ø mm (Corrugated CU tube & slot )	13.9
Outer jacket mm	15.7 PE
Mechanical characteristics
Maximum tension(N)	1078
Single bending radius(mm)	80
Storage temperature(°C)	–55 ～ +80°C
Installation temperature(°C)	–40 ～ +80°C
Electrical characteristics
Characterristic Impedance (Ohm)
100-2500 MHz	50.0
Voltage standing-wave ratio
800-1000 MHz	1.15
1700-2200 MHz	1.20
Peak power(KW)	40.0
Cut-off frequency(Ghz)	8.8
Attenuation constant(dB/100m)
150 MHz	3.30
450 MHz	6.60
900 MHz	9.50
1800 MHz	13.10
2200 MHz	14.90
2400 MHz	15.70
Coupling Loss(50%/95%,2m)
150 MHz	62/78
450 MHz	70/80
900 MHz	71/82
1800 MHz	77/88
2200 MHz	76/85
2400 MHz	77/87
