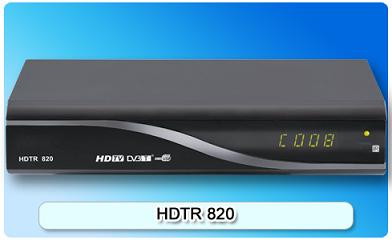

150204. HDTR 820

Fully compliant with DVB-T; USB 2.0 for software update/PVR/media play back; Time shift supported with external hard drive disc; Full HD output in 720p, 1080i, 1080p; HDCP protection; Multi-lingual OSD and user-friendly UI; Parental Control, Teletext, EPG supported; Favorite Group supported; Less than 0.5 Watt in standby.

Detailed description

Features:

Fully compliant with DVB-T
USB 2.0 for software update/PVR/media play back
Time shift supported with external hard drive disc
Full HD output in 720p, 1080i, 1080p
HDCP protection
Multi-lingual OSD and user-friendly UI
Parental Control, Teletext, EPG supported
Favorite Group supported
Less than 0.5 Watt in standby

Specifications

DVB-T ANT Input/Demodulation
Connector Type	IEC-Female * 1 for ANT IN ， IEC-Male * 1 for LOOP THROUGH
Input Frequency	(UHF)470 ∽ 862MHz,(VHF)170 ∽ 230MHz
Bandwidth	6,7,8MHz
Signal Input level	-78 ∽ -10dBm
Input Impedance	75Ohm
ANT Power	5V(On/Off),Imax=100mA
Demodulation Scheme	QPSK,16-QAM,64-QAM
Demodulation Type	COFDM, fully compliant with DVB-T Standard
Data Service Port
Connector	USB
Data Protocol	USB2.0 interface
Media Features
Picture	JPEG,BMP,PNG
Power Supply
Adapter
AC Input	100-240VAC@50/60Hz±5%
DC Output	12V 1.5Amax
Receiver
DC Input	12V/2Amin
Power Consumption	10W max
Memory
Flash	32Mbit
DDRII Memory	512Mbit
Physical Characteristics
Physical Size	197mm * 128mm * 41mm
Front Panel
Indicator	LED Indicator for Power On/Off
Remote Control input	Infra-red receiver
Display	Option for 4 Digits 7-segment LED display
Rear Panel
Connector	2 * IEC connector for ANT IN and LOOP THROUGH
	1 * HDMI 1.3 interface, up to 1080p
	1 * AV RCA6( YPbPr, CVBS, L/R)
	1 * COAXIAL
	1 * OPTICAL
	1 * USB2.0 interface
Remote Specifications
Battery	(AAA 1.5V)*2
Operation Distance	8m Min.（front distance from receiver）
Operation Angle Range	±30°(horizontal)，±20°(vertical)
