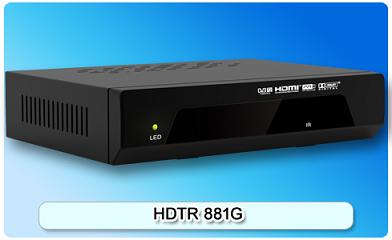

150305. HDTR 881G

Fully Compliant with DVB-T2 and DVB-T; Support MEPG-4 AVC(H.264) MP/HP@L4.1; Support MEPG-2 MP@HL/ML; HE AAC5.1, HE AAC+, DD, DD+ (Dolby is optional); Multi Bandwidth: 6M 7M & 8M; Supports 64QAM, 16QAM and QPSK (4QAM) sub-carriers.

Detailed description

Features:

Fully Compliant with DVB-T2 and DVB-T
Support MEPG-4 AVC(H.264) MP/HP@L4.1
Support MEPG-2 MP@HL/ML
HE AAC5.1, HE AAC+, DD, DD+ (Dolby is optional)
Multi Bandwidth: 6M 7M & 8M
Supports 64QAM, 16QAM and QPSK (4QAM) sub-carriers
Video decoding and output: 1080p/1080i/720p
Analog Video output: PAL/NTSC
Conversion between SD programs and HD programs
USB2.0 supported for upgrade, PVR and time shifting
SupportParental Control,Teletext,Subtitle
Aspect ratio: 4:3/16:9,By Pan & Scan and Letter Box conversion
Electronic program guide (EPG)
Software upgrade (OAD or USB)
32 bits true color OSD
Program editor
Support Favorite Group
Support extern IR&display
Support Digits

Specifications

CPU and Memory
CUP	MIPS 34K@600 MHz
DDR2	DDR2 512Mbit(64MByte)
Flash	32Mbit(4MByte)
Tuner
Connector Type	RF In/ANT In(IEC-Female)
Input Frequency	(UHF)470∽866MHz, (VHF)170∽230MHz
Bandwidth	6, 7, 8MHz
Signal Input Level	-78∽-20dBm
Input Impedance	750hm
Active Antenna	5V(On/Off), Imax=100mA
Demodulation scheme	QPSK, 16-QAM, 64-QAM, 256-QAM
FFT	1K, 2K, 4K, 8K, 16K, 32K
FECE mode	1/2, 2/3, 3/4, 3/5, 4/5, 5/6
Guard Interval	1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256
Software Function
OS	ECOS
EPG	Fully support to 7 days Electronic Program Guide(EPG)
Video Decoding	MPEG1, MPEG2, MPEG4, H264, VC-1, MOTION JPEG, MPG, MP4
Video Format	avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts
Audio Decoding	MPEG-1/2/3/4, wma
Audio Format	mp3, wma, agg
Picture Format	JPEG, BMP, PNG
Video Resolution	480i, 480P, 576i, 576P, 720P, 1080i, 1080P
Video Aspect Ratio	4:3(LB/SCAN), 16:9(LB/FIT)
Analog Video System	PAL, NTSC, SECAM
OSD Language	nine kinds of language
LCN Sort	Support Logic Channel Number(LCN)
Teletext	VBI insertion for Teletext,CC and WSS
Time Shift	Support Time Shift
Hardware Interface
Video Output	RCA(CVBS, L/R), HDMI Interface
SPDIF Output	None
USB Interface	1*USB2.0
Button	none
Power supply	AC Input 100~240V 50Hz, 10WMax
Other
option	IR Cable
