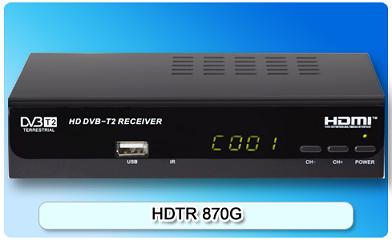

150315. HDTR 870G

Fully compliant with DVB-T2 ; USB2.0 for software update/PVR/media play back ; Full HD output in 720p,1080i,1080p ; HDCP protection; Time shift supported with external hard drive disc; DVB subtitle supported.

Detailed description

Features:

Fully compliant with DVB-T2
USB2.0 for software update/PVR/media play back
Full HD output in 720p,1080i,1080p
HDCP protection
Time shift supported with external hard drive disc
DVB subtitle supported
Less than 0.5 Watt in standby
Multi-lingual OSD and user-friendly UI
Parental Control,Teletext,EPG supported
Standard Russian OSD menu design

Specifications

DVB-T2 ANT Input/Demodulation
Connector Type	IEC-Female * 1 for ANT IN, IEC-Male * 1 for ANT OUT
Input Frequency	(UHF)470∽866MHz,(VHF)170∽230MHz
Bandwidth	6,7,8MHz
Signal Input level	-78 ∽ -20dBm
Input Impedance	75Ohm
ANT Power	5V(On/Off), Imax=100mA
Demodulation Scheme	QPSK, 16-QAM, 64-QAM, 256-QAM
Demodulation Type	OFDM, fully compliant with DVB-T2 Standard
Media Features
Picture	JPEG,BMP,PNG
Power Supply
AC Input	100-240VAC@50/60Hz±5%
Power Consumption	10Wmax
Memory
Flash	32Mbit
DDRII Memory	512Mbit
Physical Characteristics
Physical Size	170mm * 96mm * 40mm
Front Panel
Key	POWER, CH+, CH-
Indicator	LED Indicator for Power On/Off
Display	4 Digits 7-segment LED display
Remote Control Input	Infra-red receiver
Interface	1 * USB2.0 interface
Rear Panel
Connector	2 * IEC connector for ANT IN and ANT OUT
	1 * HDMI 1.3 interface, up to 1080p
	1 * AV RCA3(CVBS, L/R)
	1 * COAXIAL
Remote Specifications
Battery	(AAA 1.5V)*2
Operation Distance	8m Min.（front distance from receiver）
Operation Angle Range	±45°(horizontal)，±20°(vertical)
