150402. HDTR 230
  • 150402. HDTR 230

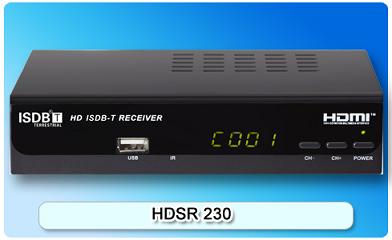

150402. HDTR 230

Fully compliant with ISDB-T; USB 2.0 for software update/PVR/media play back; DVB subtitle supported; Automatic/manual scan; PAL/NTSC/SECAM TV format supported; Full HD output in 720p, 1080i, 1080p.
Detailed description

Features:

  • Fully compliant with ISDB-T
  • USB 2.0 for software update/PVR/media play back
  • DVB subtitle supported
  • Automatic/manual scan
  • PAL/NTSC/SECAM TV format supported
  • Full HD output in 720p, 1080i, 1080p
  • HDCP protection
  • 16:9PillarBox/16:9Pan&Scan/4:3Full/4:3Pan&Scan/4:3WideScreen/Auto aspect ratio supported
  • LCN (Local Control Network)
  • Multi-lingual OSD and user-friendly UI
  • Parental Control, Teletext, EPG supported
  • Time-shift and PVR function supported, recording TV and playback media files with external storage devices (USB stick / USB HDD)
  • Timer function supported Favorite Group supported
  • Support movie files with MPEG1/MPEG2/MPEG4/H264/VC-1/MOTION JPEG, so on.
  • Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a)
  • Suport picture with JPEG, BMP, PNG

Specifications

ANT INPUT/DEMODULATION

Connector Type F-Female x1 for ANT input;F- Female x1 for LOOP
Input Frequency (UHF)470∽806MHz,(VHF)174∽216MHz
Bandwidth 6,7,8MHz
Signal Input level  -78dBm∽-20dBm
Input Impedance 75Ohm
ANT Power 5V(On/Off),Imax=100mA
Demodulation Scheme QPSK,16-QAM,64-QAM
Demodulation Type OFDM, fully compliant with ISDB-T Standard

Media Features

Picture JPEG,BMP,PNG

Power Supply

Adapter

AC Input 100-240VAC@50/60Hz
Power Consumption Max10W

Memory

Flash 32Mbit
DDRII Memory 512Mbit

Physical Characteristics

Physical Size 170mm * 96mm * 40mm

Front Panel

Key POWER, CH+,CH-
Indicator LED Indicator for Power On/Off
Remote Control Input Infra-red receiver
Display Option for 4 Digits 7-segment LED display
Connector 1xUSB2.0 interface


Rear Panel

Connector 2 x F-Female connector for ANT.IN and Loop
HDMI 1.3 interface, up to 1080p
1xRCA( CVBS, L/R)
1xCOAXIAL

Remote Specifications

Battery (AAA 1.5V)*2
Operation Distance 8m Min.(front distance from receiver)
Operation Angle Range ±45°(horizontal),±20°(vertical)
