150873. GS-3406 SAT 6-Way Splitter
  • 150873. GS-3406 SAT 6-Way Splitter

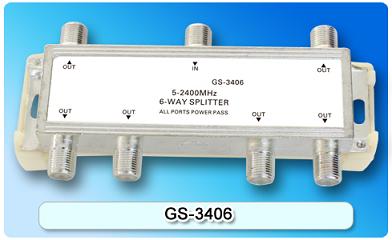

150873. GS-3406 SAT 6-Way Splitter

All ports power pass design; Screening factor: 5-2400MHz≥100dB; Power passing-24V 0.8A(MAX.); All ports are F-(f)connector,75Ohm; Zinc die-cast housing, tin-plated.
Detailed description

Features:

  • All ports power pass design
  • Screening factor: 5-2400MHz≥100dB
  • Power passing-24V 0.8A(MAX.)
  • All ports are F-(f)connector,75Ohm
  • Zinc die-cast housing, tin-plated

Specifications

Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤10.5

≥22

≥10

40-1000

≤11

≥20

≥12

1000-1750

≤12.5

≥20

≥12

1750-2400

≤15.5

≥20

≥10
