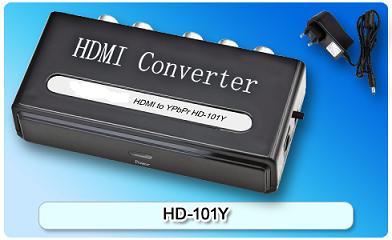

152801. HD-101Y HDMI Converter

Allow you to connect HDMI sources to a display with YPbPr interface; Convert HDMI digital signal to YPbPr and stereo audio with free; YPbPr Output resolution with the change of the input signal HDMI; Support full HDMI audio and video; No signal loss; Suitable for HDCP compliant equipments.

Detailed description

Features:

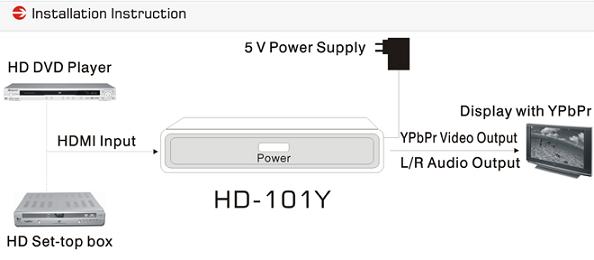

Allow you to connect HDMI sources to a display with YPbPr interface
Convert HDMI digital signal to YPbPr and stereo audio with free
YPbPr Output resolution with the change of the input signal HDMI
Support full HDMI audio and video
No signal loss
Suitable for HDCP compliant equipments
Plug and play, and no software installation required
Easy to install and simple to use

Specifications

Item	Specification	Item	Specification
Product	HDMI to YPbPr HD-101Y	HDCP Compliant	HDCP Rev 1.2
Input Port	One HDMI signal	Frequency Range	25-165MHz
Output Port	A set of YPbPr and stereo audio signal	Vertical Frequency Range	60Hz
Input Port Connector	HDMI 19pin A type	Operation Temperature	0℃ to 70℃
Output Port Connector	YPbPr and RCA for stereo audio	Power Adapter	5V 2A
HDMI Input Standard	480i 480P 576i 576P 720P 1080i 1080P	Housing Material	ABS
YPbPr Output Resolution Corresponding	480i 480P 576i 576P 720P 1080i	Dimension	1015624.5mm
