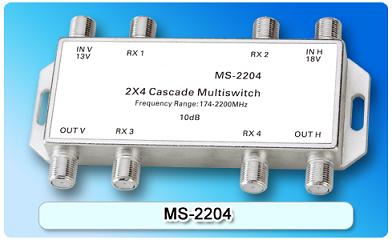

150602. MS-2204 2X4 Cascade Multi switch, 2 In Series
  • 150602. MS-2204 2X4 Cascade Multi switch, 2 In Series

150602. MS-2204 2X4 Cascade Multi switch, 2 In Series

Power supplied by satellite receiver; 2 SAT inputs+ ANT input, 4 outputs
Detailed description

Features:

  • Power supplied by satellite receiver.
  • 2 SAT inputs+ ANT input, 4 outputs

Specifications

Item

Specification

Trunk Loss

≤1,0dB(allow 20 floors in cascade installation)

Coupling Loss(TAP)

0+2/-4 dB@ 174-2200 MHz ;10±3,0 dB@ 174-2200 MHz

Frequency Range

174 to 2200 MHz

Rx port isolation ≥20dB@ 174-2200MHz
Polarization isolation ≥30dB between vertical and horizontal polarizations.
Return Loss(ALL) ≥9dB
Maximum current consumption ≤250mA
Vertical voltage switching 9.5-14 VDC
Horizontal voltage switching 15.5-21 VDC
Impedance(Z) 75 ohms
Connectors "F" type (female)
Operating Temperature Range -10℃~50℃
