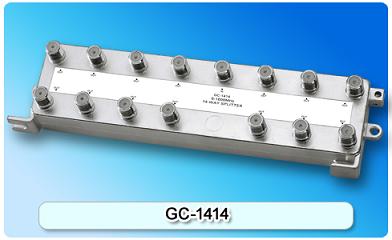

151438. GC-1414 5-1000MHz 14-way Splitter

Zinc die-cast housing, tin-plated; Screening factor: 5-1000MHz≥100dB; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm; Bright tin finish, solder or glue sealed optional.

Detailed description

Features:

Zinc die-cast housing, tin-plated
Screening factor: 5-1000MHz≥100dB
Low insertion loss,high return loss and isolation
Micro-strip circuit design and perfect performance index
All ports F-(f)connector,75 Ohm
Bright tin finish, solder or glue sealed optional

Specifications

Frequency Range(MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤14.5	≥25	≥20
40-470	≤14.5	≥25	≥20
470-860	≤15.5	≥25	≥18
860-1000	≤16.0	≥22	≥17
