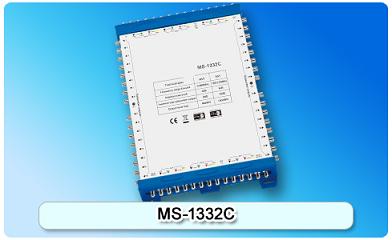

150682. MS-1332C Cascadable Multiswitch of 13 in 32, 13 In Series

C means Cascade type, E means End type Power supplied by satellite receiver and external power supply; 12 SAT inputs + 1 ANT input, 32 output. Cascade type supports; 12 SAT + 1ANT connect with next stage; SAT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands; Red LED for power in, yellow LED for power link.

Detailed description

Features:

C means Cascade type, E means End type
Power supplied by satellite receiver and external power supply
12 SAT inputs + 1 ANT input, 32 output. Cascade type supports
12 SAT + 1ANT connect with next stage
SAT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands
Red LED for power in, yellow LED for power link

Specifications

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Return Loss SAT Inputs	10(dB)
Frequency Range SAT	950-2150(MHz)	Return Loss ANT Input	12(dB)
Insertion Loss ANT	5(dB)	Return Loss Outputs	8(dB)
Insertion Loss SAT	5(dB)	Output Level ANT	88(dBuV)
Insertion Loss Trunk(for cascadable type)	ANT.: 8(dB) SAT.: 10(dB)	Output Level SAT	100(dBuV)
Isolation In-In SAT	25(dB)	Normal Working Voltage	12-20(V)
Isolation In-In SAT/ANT	25(dB)	DC Power Consumption	200(mA)
Isolation Between Outputs	25(dB)	Supply Voltage(VDC)	20V(±1)3000mA
Switching Isolation SAT Inputs	28(dB)	Temperature Range	-20℃-60℃
Cross Isolation(for cascadable type)	25(dB)	Impedance(all ports)	75(Ω)

Switching Voltage、Signal : 13/18V 、0/22KHz、DiSEqC 1.0，2.0
Connectors:“F” type female
