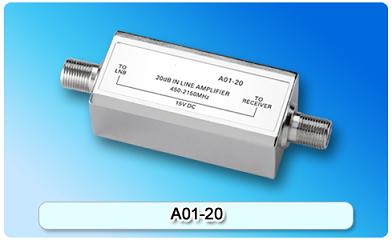

150901. A01-20 In-line Amplifier

Zinc die-cast housing,nickel-plated; Power supply:15±3VDC; Frequency Range:450-2150MHz; Power supplied from satellite receiver through coaxial cable; DC power passing: 500mA (MAX.).

Detailed description

Features:

Zinc die-cast housing,nickel-plated
Power supply:15±3VDC
Frequency Range:450-2150MHz
Power supplied from satellite receiver through coaxial cable
DC power passing: 500mA (MAX.)

Specifications

Item	Frequency Range (MHz)	Gain (dB)	Return Loss (dB)
IN-OUT	450-950	20.0±1.0	≥12.0
IN-OUT	950-2150	20.0±1.5	≥12.0
