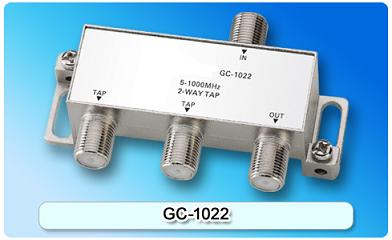

151502. GC-1022 5-1000MHz 2-way Tap

Zinc die-cast housing, nickel-plated; Screening factor: 5-1000MHz≥100dB; Easy installation, capable of passing cable thru housing bottom; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Screening factor: 5-1000MHz≥100dB
Easy installation, capable of passing cable thru housing bottom
Low insertion loss,high return loss and isolation
Micro-strip circuit design and perfect performance index
All ports F-(f)connector,75 Ohm

Specifications

Item	Frequency Range	8	10	12	14	16	18	20	22	24	27	30
Insertion Loss (dB)	5-40(MHz)	3.5	2.5	1.5	1.5	1.0	1.0	0.8	0.8	0.8	0.8	0.8
	40-470(MHz)	3.8	2.8	1.8	1.8	1.2	1.2	1.0	1.0	1.0	1.0	1.0
	470-860(MHz)	3.8	2.8	2.0	2.0	1.2	1.2	1.0	1.0	1.0	1.0	1.0
	860-1000(MHz)	4.2	3.2	2.2	2.2	1.5	1.5	1.0	1.0	1.0	1.0	1.0
Tap Loss Tolerance (dB)	5-40(MHz)	±1.0
	40-470(MHz)	±1.0
	470-860(MHz)	±1.0
	860-1000(MHz)	±1.5
Mutual Isolation (dB)	5-40(MHz)	28	30	30	30	30	30	30	30	30	30	30
	40-470(MHz)	28	30	30	30	30	30	30	30	30	30	30
	470-860(MHz)	25	25	25	25	25	25	25	25	25	25	25
	860-1000(MHz)	25	25	25	25	25	25	25	25	25	25	25
Reverse Isolation (dB)	5-40(MHz)	33	28	30	30	35	35	40	40	40	40	42
	40-470(MHz)	30	28	30	30	35	35	35	35	35	38	38
	470-860(MHz)	30	26	28	28	33	33	35	35	35	38	38
	860-1000(MHz)	28	23	25	25	25	26	30	30	30	35	35
Return Loss (dB)	5-40(MHz)	20	20	20	20	20	20	20	20	20	20	20
	40-470(MHz)	20	20	20	20	20	20	20	20	20	20	20
	470-860(MHz)	18	18	18	18	18	18	18	18	18	18	18
	860-1000(MHz)	18	18	18	18	18	18	18	18	18	18	18
