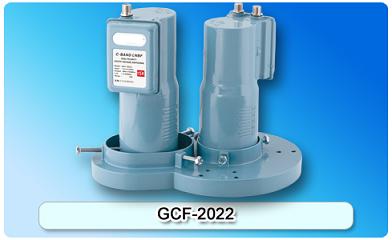

151046. GCF-2022 C-Band LNBF(2 SAT in one dish,0/22KHz Switch inside)

Dual Polarity Switchable; Used one dish for receiving two satellites signal; Super low Noise, Digital Ready; High Gain Output, Easy Installation; Compound Item: C Band Single LNBF and C Band Twin LNBF( DiSEqC & 0/22KHz Switch inside).

Detailed description

Features:

Dual Polarity Switchable
Used one dish for receiving two satellites signal.
Super low Noise，Digital Ready
High Gain Output，Easy Installation
Compound Item: C Band Single LNBF and C Band Twin LNBF( DiSEqC & 0/22KHz Switch inside)

Specifications

Item	Specification	Item	Specification
Input Frequency Range	3.40～4.20GHz	L.O. Phase Noise	-70dBc/Hz@10KHz -90dBc/Hz@100KHz -110dBc/Hz@1MHz
Output Frequency Range	950-1750MHz	Image Rejection	40dB(Min.)
Noise Figure	15°K(Typ.)	Output VSWR	2.5:1(Max.)
Conversion Gain	65dB(Typ.)	Output Power	0dBm (Min.)(at 1dB gain compression)
Gain Flatness	±1dB(36MHz)	Connector Type	75Ω Female Connector
Cross POL. Isolation	20dB(Typ.)	DC Current Consumption	120mA(Max.)
L.O. Frequency	5.150GHz	F/D Ratio	0.28～0.42 (Adjustable)
L.O. Frequency Stability	±1.0MHz(Max.)@+25℃ ±2.0MHz(Max.)@-30℃～+70℃	Input Reflector Type	Prime focus
Operating Temperature	-30℃~+70℃	POL. Switching Voltage	10.5~14.0V@VP 16.0~20.0V@HP
