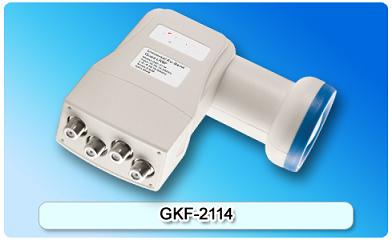

151026. GKF-2114 Universal Ku-Band Quad LNBF
Full coverage of Ku-Band for Analog and Digital reception;
Low noise figure;
Easy installation;
Low power consumption;
High quality weather protection.
Detailed description
Features:
- Full coverage of Ku-Band for Analog and Digital reception
- Low noise figure
- Easy installation
- Low power consumption
-
High quality weather protection
Specifications
| Item | Specification | Item | Specification |
| Input Frequency Range |
Low Band:10.70~11.70GHz High Band:11.70~12.75GHz |
L.O. Phase Noise |
-50dBc/Hz@1KHz -75dBc/Hz@10KHz -95dBc/Hz@100KHz |
| Output Frequency Range |
Low Band:950~1950MHz High Band:1100~2150MHz |
Image Rejection | 40dB(Min.) |
| Noise Figure |
Low Band:0.6dB(Typ.) High Band:0.6dB(Typ.) |
Output VSWR | 2.0:1(Max.) |
| Conversion Gain | 60dB(Typ.) | Output Power | 0dBm (Min.)(at 1dB gain compression) |
| Gain Flatness | ±0.5dB/26MHz | Connector Type | 75Ω Female Connector |
| Cross POL. Isolation | 25dB(Typ.) | DC Current Consumption | 180mA(Typ.) |
| L.O. Frequency |
Low Band:9.75GHz High Band :10.60GHz |
Low/High Band Switching |
Low Band:0Hz High Band:22KHz±4KHz |
| L.O. Frequency Stability |
±1.0 MHz (Max.)@+25℃ ±2.0 MHz (Max.)@-30℃~+70℃ |
POL. Switching Voltage |
10.5~14.0V @VP 16.0~20.0V @HP |
| Operating Temperature | -30℃~+70℃ |
