151013. GKF-2019E Universal Ku-Band Single LNBF
  • 151013. GKF-2019E Universal Ku-Band Single LNBF

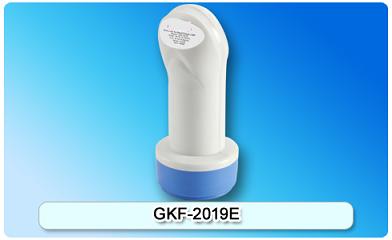

151013. GKF-2019E Universal Ku-Band Single LNBF

Low noise figure; Digital ready; Low power consumption; Easy installation; High quality weather protection.
Detailed description



Features:

  • Low noise figure
  • Digital ready
  • Low power consumption
  • Easy installation
  • High quality weather protection


Specifications


Item

Specification

Item

Specification

Input Frequency Range Low Band:10.70~11.70GHz
High Band:11.70~12.75GHz
L.O. Phase Noise -50dBc/Hz@1KHz
-75dBc/Hz@10KHz
-95dBc/Hz@100KHz
Output Frequency Range Low Band:950~1950MHz
High Band:1100~2150MHz
Image Rejection 40dB(Min.)
Noise Figure Low Band:0.6 dB(Typ.)
High Band:0.6 dB(Typ.)
Output VSWR 2.0:1(Max.)
Conversion Gain 60dB(Typ.) Output Power 0dBm (Min.)(at 1dB gain compression)
Gain Flatness ±0.5dB/26MHz Connector Type 75Ω Female Connector
Cross POL. Isolation 25dB(Typ.) DC Current Consumption 80mA(Typ.)
L.O. Frequency Low Band:9.75GHz
High Band:10.60GHz
Low/High Band Switching Low Band:0Hz
High Band:22KHz±4KHz
L.O. Frequency Stability ±1.0MHz(Max.)@+25℃
±2.0MHz(Max.)@-30℃~+70℃
POL. Switching Voltage 10.5~14.0V @VP
16.0~20.0V @HP
Operating Temperature -30℃~+70℃
