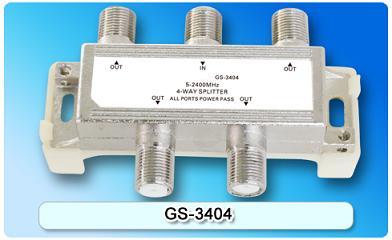

150874. GS-3404 SAT 4-Way Splitter

All ports power pass design; Screening factor: 5-2400MHz≥100dB; Power passing-24V 0.8A(MAX.); All ports are F-(f)connector,75Ohm; Zinc die-cast housing, tin-plated.

Detailed description

Features:

All ports power pass design
Screening factor: 5-2400MHz≥100dB
Power passing-24V 0.8A(MAX.)
All ports are F-(f)connector,75Ohm
Zinc die-cast housing, tin-plated

Specifications

Frequency Range (MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤8.0	≥22	≥10
40-1000	≤8.5	≥20	≥12
1000-1750	≤9.5	≥20	≥12
1750-2400	≤11	≥20	≥10
