151415. GC-1038 5-1000MHz 8-way Splitter
  • 151415. GC-1038 5-1000MHz 8-way Splitter

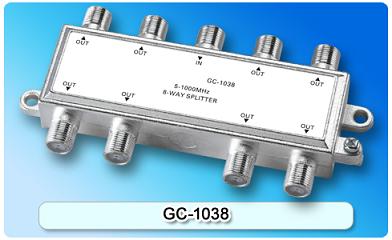

151415. GC-1038 5-1000MHz 8-way Splitter

Zinc die-cast housing, tin-plated; Screening factor: 5-1000 MHz≥100dB; Easy installation; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm.
Detailed description

Features:

  • Zinc die-cast housing, tin-plated
  • Screening factor: 5-1000 MHz≥100dB
  • Easy installation
  • Low insertion loss,high return loss and isolation
  • Micro-strip circuit design and perfect performance index
  • All ports F-(f)connector,75 Ohm
  • 6KV Surge Protected

Specifications

Frequency Range(MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤10.5

≥30

≥20

40-470

≤10.5

≥25

≥20

470-860

≤11.5

≥25

≥18

860-1000

≤12.0

≥22

≥18
