151014. GKF-1501 Ku-Band Dual Polarity Single LNBF
  • 151014. GKF-1501 Ku-Band Dual Polarity Single LNBF

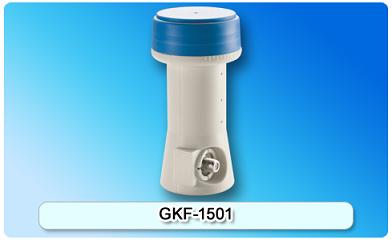

151014. GKF-1501 Ku-Band Dual Polarity Single LNBF

Low noise figure; Digital ready; Low power consumption; Easy installation; High quality weather protection.
Detailed description



Features:

  • Low noise figure
  • Digital ready
  • Low power consumption
  • Easy installation
  • High quality weather protection


Specifications


Item Specification Item Specification
Input Frequency Range

11.70~12.75GHz

L.O. Phase Noise

-50dBc/Hz@1KHz
-75dBc/Hz@10KHz
-95dBc/Hz@100KHz
Output Frequency Range 950~2000MHz

Image Rejection

40dB(Min.)

Noise Figure 0.6dB(Typ.)

Output VSWR

2.0:1(Max.)

Conversion Gain 60dB(Typ.)

Output Power

0dBm (Min.)(at 1dB gain compression)

Gain Flatness ±0.5dB/26MHz

Connector Type

75Ω Female Connector

Cross POL. Isolation 25dB(Typ.)

DC Current Consumption

70mA(Typ.)
L.O. Frequency 10.75GHz POL. Switching Voltage 10.5~14.0V @VP
16.0~20.0V @HP
L.O. Frequency Stability ±1.0MHz(Max.)@+25℃
±2.0MHz(Max.)@ -30℃~+70℃
Operating Temperature -30℃~+70℃
