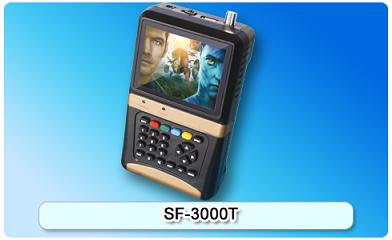

151108. SF-3000T Digtal Satellite Finder
Fully compliant with DVB-T standard;
Full color LCD;
High speed spectrum and search function;
Software upgrade by USB2.0 interface;
Support edit manually by on-board keypad.
Detailed description
Features:
- Fully compliant with DVB-T standard
- Full color LCD
- High speed spectrum and search function
- Software upgrade by USB2.0 interface
-
Support edit manually by on-board keypad
Specifications
| Input signal | Signal processing | ||
| Frequency range | 170MHz~230MHz (VHF) | Demodulation |
QPSK ,16-QAM,64-QAM |
| 470MHz~862MHz (UHF) | |||
| Signal level | -78~-10dBm | Demodulation Type |
COFDM |
| Impedance | 75Ω | Bandwidth | 6MHz, 7MHz, 8MHz |
| Others | Power supply | ||
| Dimensions | 160×97×47(mm) | DC Power Supply | DC7.4V battery |
| Operating temperature | 0℃~ +40℃ | Power Charger Input | AC110V/60Hz/220V/50Hz±10% |
| LCD display | 3.5 inch | Power Charger Output | 13V DC 2000mA |
| Audio output | built-in loudspeaker | Operating Time Of Battery | Last for 4 hours (fully charged) |
| Input connector | IEC type | ||
