150101. HDSR 628G
  • 150101. HDSR 628G

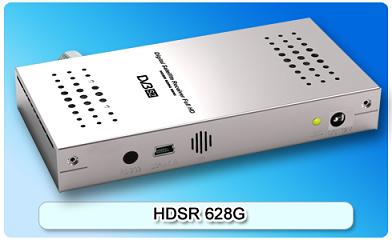

150101. HDSR 628G

Full compliant with DVB-S2 and DVB-S; Support MEPG-2 MP@HL,MPEG-1 Decoding,MPEG-4 ASP@L5 HD resolution,H.264 MP&HP@L4,HW JPEG decoding; HE AAC5.1, HE AAC+, DD, DD+ (Dolby is optional); Input/loop out Frequency:950~2150; Waveform:QPSK,8PSK.
Detailed description

Features:

  • Full compliant with DVB-S2 and DVB-S
  • Support MEPG-2 MP@HL,MPEG-1 Decoding,MPEG-4 ASP@L5 HD resolution,H.264 MP&HP@L4,HW JPEG decoding
  • HE AAC5.1, HE AAC+, DD, DD+ (Dolby is optional)
  • Input/loop out Frequency:950~2150.
  • Waveform:QPSK,8PSK.
  • Video decoding and output: 1080p/1080i/720p
  • Analog Video output: PAL/NTSC
  • Conversion between SD programs and HD programs
  • USB2.0 supported for upgrade, PVR and time shifting
  • SupportParental Control,Teletext,Subtitle
  • Aspect ratio: 4:3/16:9,By Pan & Scan and Letter Box conversion
  • Electronic program guide (EPG)
  • Software upgrade (OAD or USB)
  • Support Multi-language Audio
  • Program editor
  • Support Favorite Group
  • Support BISS & TWIN Protocol
  • Support extern IR & display

Specifications

CPU and Memory

CUP GX6605
  MIPS 34K@600MHz
DDR2 DDR2 512Mbit(64MByte)
Flash 32Mbit(4MByte)

Tuner

Connector Type F-Female *1 for LNB Input
Input Frequency 950MHz-----2150MHz
Signal Input Level  -65∽-25dBm
Input Impedance 75 Ohm
LNB Power Out 13V/18V, Imax=500mA, overload protection
LNB Waveform Out 0/22kHz switch
Demodulation scheme QPSK/8PSK: 1~55Msps
Code Rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10 (QPSK) 3/5, 2/3, 3/4, 5/6, 8/9, 9/10(8PSK)
DiSEqC 1.0, 1.1, 1.2
FFT 1k,2k,4k,8k normal and extended,16knormal and extended,32k normal and extended
FECE mode 64800 bits, 16200 bits
Guard Interval 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Software Function

EPG Fully support to 3 days Electronic Program Guide(EPG)
Video Decoding MPEG1, MPEG2, H264
Video Format avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts
Audio  Decoding MPEG-1/2/3/4, wma
Audio Format mp3, wma, agg
Picture Format JPEG, BMP, PNG
Video Resolution 480i, 480P, 576i, 576P, 720P, 1080i, 1080P
Video Aspect Ratio 4:3(LB/SCAN), 16:9(LB/FIT)
Analog Video System PAL, NTSC
OSD Language nine kinds of language
LCN Sort Support Logic Channel Number(LCN)
Teletext VBI insertion for Teletext,CC and WSS
Time Shift Support Time Shift

Hardware  Interface

Video Output AV(CVBS, L/R),  HDMI Interface
SPDIF Output None
USB Interface 1*USB2.0
RS-232 1*RS-232
Button None
Power supply DC Input 12V/1.5A
