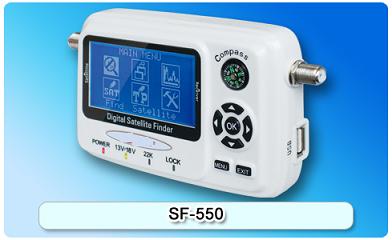

151115. SF-550 Digital Satellite Finder

Edit transponder, down frequency, LO frequency of LNB, symbol rate, etc. Find satellite signal accurately and simply. Built-in Power、13V/18V、0/22K、Signal locked indicating LEDs Support 13V/18V switch. Support 0/22KHz switch. Support DISEqC1.0 switch.

Detailed description

Features:

Edit transponder, down frequency, LO frequency of LNB, symbol rate, etc.
Find satellite signal accurately and simply.
Built-in Power、13V/18V、0/22K、Signal locked indicating LEDs
Support 13V/18V switch.
Support 0/22KHz switch.
Support DISEqC1.0 switch.
Support UASLS.
Update data through USB.
Use LCD to display the satellite signal strength、 quality、 modulation type、 FEC、 C/N、 BER.
Provide spectrum display.
Support DVB-S and DVB-S2.
Support QPSK、8PSK、16APSK、32APSK
Preset satellite parameters according to customer's needs
Optional function of elevation angle measurement (Cost is slightly higher)

Specifications

Item	Specification
Input signal	Frequency range	950~2150MHz
	Signal Level	-65 ~ -25dBm
	Impedance	75Ω
Signal processing	Symbol rate	1Msps~45Msps
	Demodulation	DVB-S: QPSK DVB-S2: 8PSK,16APSK,32APSK
	22KHz Tone	Supported
	DiSEqC1.0	Supported
	USALS	Supported
Power supply	Switching Power input	AC110~240V 50Hz/60Hz
Power supply	Switching Power output	18V DC 1000mA
Others	Connector	F type
	USB port	Supported
	Operation temperature	-10℃ ~ +50℃
