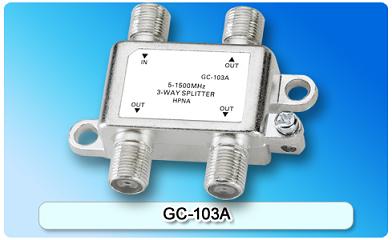

151460. GC-103A 5-1500MHz HPNA 3-way Splitter

Zinc die-cast housing, zinc-plated; Light weight and compact size; Easy installation with two edge hole sites; Screening factor: 5-1500MHz≥100dB; Low insertion loss, high isolation, perfect performance index; All ports F-(f)connector,75Ohm.

Detailed description

Features:

Zinc die-cast housing, zinc-plated
Light weight and compact size
Easy installation with two edge hole sites
Screening factor: 5-1500MHz≥100dB
Low insertion loss, high isolation, perfect performance index
All ports F-(f)connector,75Ohm

Specifications

Frequency Range(MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-44	≤10	≥10	≥12
44-470	≤10	≥10	≥12
470-860	≤10	≥10	≥12
860-1500	≤10	≥10	≥12
