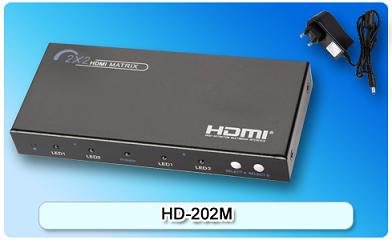

152701. HD-202M HDMI Matrix

2-in 2-out full HDMI Matrix switch; HDMI Specification 1.3b compliant; Integrated HDCP decryption/encryption engines which are compatible with HDCP 2.0 Encrypted HDCP keys stored in serial EE Wide frequency range:25MHz-225MHz TMDS clock.

Detailed description

Features:

2-in 2-out full HDMI Matrix switch
HDMI Specification 1.3b compliant
Integrated HDCP decryption/encryption engines which are compatible with HDCP 2.0
Encrypted HDCP keys stored in serial EE
Wide frequency range:25MHz-225MHz TMDS clock
Support 12-bit deep color 1080P
Supports HDCP Repeater

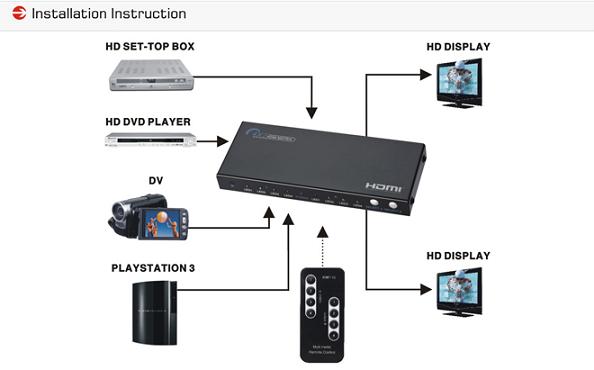

The 2 HDMI outputs can be from the same or different sources
Easy to install and simple to use.
LED indicators for signal connection
Encloses a Remote Controller for operational flexibility and easy control

Specifications

Item	Specification	Item	Specification
Product	2-in 2-out HDMI Matrix	Frequency Range	25-225MHz
HDMI Source Input Port	2	Vertical Frequency Range	60Hz
Output Port to Display	2	Power Consumption (max.)	8 Watts
Input Port Connector	HDMI 19 pin A type	Operation Temperature	0℃ to 70℃
Output Port Connector	HDMI 19 pin A type	Power Adapter	5V 2 A
HDCP Compliant	HDCP Rev 2.0	Housing Material	SPCC
Single Link Range	1920*1200	Dimension(mm)	1506622mm
