130801. Waterproof IR camera, 20M

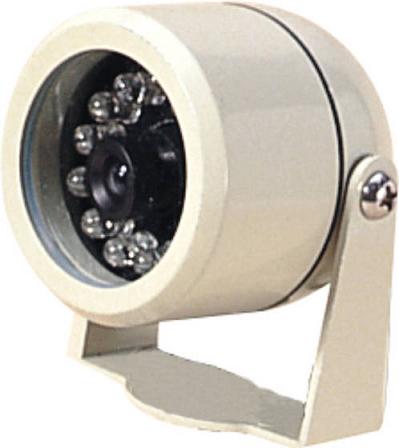

Waterproof IR camera, 20M
Detailed description
Features
1/3" Sony Super HAD CCD
420 TVL
3.6mm standard lens
Φ5×30PCS IR LED
20m IR distance
Parameters
| Model | DF-840CM | DF-161RP | DF-166RN | DF-162RN |
| Image Sensor | CMOS | 1/4" Sharp CCD | 1/4" Sony Super HAD CCD | 1/3" Sony Super HAD CCD |
| Pixels(H×V) |
P:648(H)×488(V) N:648(H)×488(V) |
P:512(H)×582(V) N:512(H)×492(V) |
P:500(H)×582(V) N:510(H)×492(V) |
|
| Scanning System | PAL / NTSC | |||
| Horizontal Resolution | 400TVL | 420TVL | ||
| Synchronization | Internal | |||
| Minimum Illumination | 0Lux/F1.2 (IR LED ON) | |||
| Backlight Compensation | Automatic | |||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | |||
| White Balance | Automatic | |||
| Lens | Standard Lens 3.6mm(6mm Optional) | |||
| IR LED | Ø5×30pcs | |||
| IR Wavelength | 850nm | |||
| IR Viewing Range | 20m | |||
| S/N Ratio | ≥48dB | |||
| Gamma Correction | 0.45 | |||
| Audio Output | Yes | |||
| Video Output | 1.0Vp-p/75Ω | |||
| Operation Temperature | '-20℃～50℃ | |||
| Power Supply | 12V, 1,000mA | |||
| Dimensions (mm) | 59×59×56mm | |||
| Weight (g) | 180g | |||
| IP Grade | IP66 | |||
