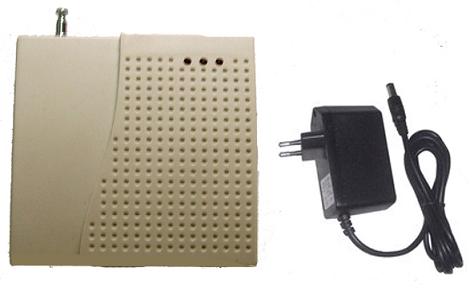

131525. wireless signal repeater

Model:VIP-920

1.Description:

1)Wireless alarm Repeaters (signal transfer)is adopt MCU and auto-code.

2)It can transfer maximum eight different control panels signal. Expend the alarm main unit to detector distance 150m.It is wireless type, plus power adaptor to supply DC power.

3) it can be put at the middle of transmitter and receiver to last/ transfer the wireless signal by double distance. It can solve the signal receiving problem at some place where signal can not be received well.

4)Widely used for factory, store, garage and so on far distance transmit

2.Specifications:

1)Power SupplyDC12V

2)Transmit distancenoninterference <500m

3)Wireless Frequency315/433MHZ

4)Operating Temperature-25+55

3.Installation:

1)Connect power,unzip double antenna.

2)Clear code: press code key 3 seconds ----- LED lights ---LED twinkle 9 times ---
LED extinguish ---- let slip key ----Clear code is OK.

3)Codepress code key --- LED light ---let slip key --- Remote control is triggered ---
LED twinkle ---LED extinguish ---code is OK.

4)According to the above step , we can set eight main unit to work with one signal repeater.

4.Notices:

1)Be careful while installation, avoid falling off and destroy.
