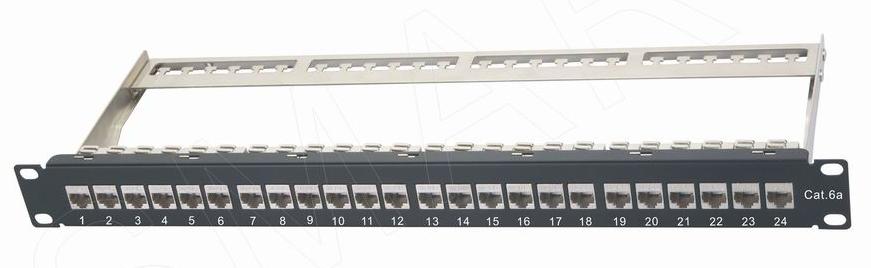

111401. 24 Port CAT.6A STP Shielded Patch Panel 10GB with Back Bar 19 Inch 1U

1. Adapt Snap-in way to install its module disposition has higher flexibility and suitability. The window of the label is furnished with removable label one, help users to manage.

2. The round rear rough part protect the wire drop off and broken

3. The jacks can be changed

4. Thickness of cold-rolled steel:1.5mm

5. Insertion life:≥1000 mating cycles

6. Operating Temperature Range : -60℃ to 80℃

7. IDC Accept: 22-26 AWG

8. Wire Scheme: T568A/B

9. Insulation Resistance: 500Ω

10. Current Rating: 1.5Amps

11.DC Resistance: 0.1 ohm MAX

12. Voltage: 150 VAC MAX

13. Plug Retention Force: 89N

14. Spring Wire: Phosphor Bronze With Gold-plated 3u-50u

15. IDC Contact: Phosphor Bronze

Package:

10Boxes in a carton

Carton Measurement: L53CM*W32CM*H23
